1
Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Oil filter
6
Parts Diagram
Parts Catalog
Front fork - Stem base
by
Front body - Front mudguard

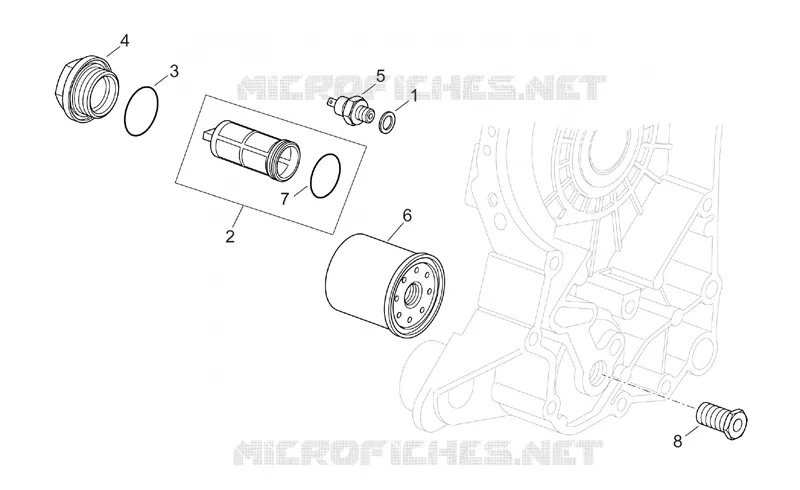

Oil filter
1
2
3
4
5
6
7
8
1
Washer 16x10.5x2.5
AP8550331
Not Available
2
Intake oil filter
AP8580074
Not Available
3
O-ring
AP8550336
Not Available
4
Oil filter plug
AP8560055
Not Available
5
Pressure sensor
AP8550512
Not Available
6
Oil filter
AP8580128
Not Available
7
O-ring
AP8550337
Not Available
8
screw
AP8580071
Not Available

Find the detailed Oil filter MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
