1
Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Central stand
by
Marzocchi front fork - Hubs, sleeves
Oil pump
1
2
3
4
4
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
Spacer
AP8580090
Not Available
2
Chain tensioner rod
AP8580156
Not Available
3
Chain tensioner sliding block
AP8580157
Not Available
4
Screw w/ flange
AP8113789
Not Available
5
Oil pump assy.
AP8580102
Not Available
6
Screw w/ flange
AP8551029
Not Available
7
Belleville spring
AP8550439
Not Available
8
Screw w/ flange
AP8550556
Not Available
9
Oil bulhead
AP8580070
Not Available
10
Screw w/ flange
AP8551045
Not Available
11
Motor oil cup
AP8580175
Not Available
12
Oil pump gear
AP8550380
Not Available
13
Oil pump chain
AP8580131
Not Available
14
Oil pump control pinion
AP8580072
Not Available
15
Gasket
AP8580092
Not Available
16
Camshaft chain
AP8580130
Not Available
17
Timing system chain pinion cpl
AP8577033
Not Available
17
Timing system chain pinion cpl
AP8580117
Not Available
18
Oil seal washer
AP8580077
Not Available
19
O-ring
AP8580118
Not Available
20
Gasket ring
AP8580113
Not Available
21
Oil pump chain drift
AP8550522
Not Available
22
Timing system cover
AP8580169
Not Available
23
screw
AP8575017
Not Available
24
Washer
AP8580107
Not Available
25
Oil filler plug
AP8580144
Not Available
26
Gasket
AP8550417
Not Available
27
Oil bulhead
AP8580083
Not Available
28
Gasket
AP8580185
Not Available
29
Locating dowel
AP8551015
Not Available
30
Hose clamp
AP8551051
Not Available

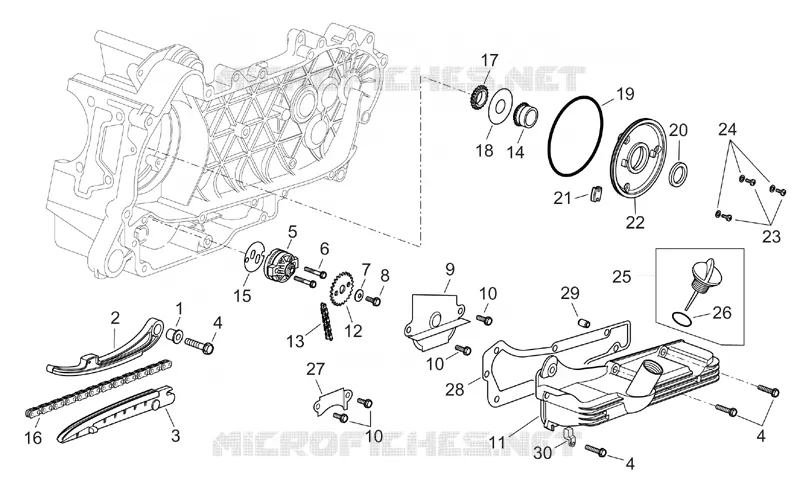

Find the detailed Oil pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
