1
Engine displacement
1000
2
Model
STRADA
3
Year
1993
4
Trim
Strada
5
Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Footrests-Stands
by
Front wheel, spokes
Rear master cylinder
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
32
33
33
33
34
35
36
37
38
39
40
1
Rear master cylinder
GU29667000
Not Available
2
Pump control lever
GU17667551
Not Available
3
Cover
GU14661100
Not Available
4
Diaphragm
GU14661300
Not Available
5
Spring
GU17667651
£10,81 Unit Price incl. VAT
6
screw
GU98620440
Not Available
7
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
8
Nut
GU92602208
Not Available
9
Washer
GU95000206
£1,02 Unit Price incl. VAT
10
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
11
Tyre
0000000
Not Available
12
Brake lever+bush
GU30676510
£85,85 Unit Price incl. VAT
13
Bushing
GU28252010
Not Available
14
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
15
Pin
GU17252350
Not Available
16
Washer
GU95100409
Not Available
17
Cap
GU17093850
Not Available
18
Nut
GU92701120
£2,00 Unit Price incl. VAT
19
O-ring
GU90706108
£1,16 Unit Price incl. VAT
20
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
21
Nut
GU92602206
£1,68 Unit Price incl. VAT
22
Pin
GU95770265
Not Available
23
Washer
GU95129110
Not Available
24
Split pin
GU95500222
£1,26 Unit Price incl. VAT
25
Change gear tie rod compl.
GU17675050
Not Available
26
Tie rod
GU17675150
£25,87 Unit Price incl. VAT
27
Nut
GU92700073
Not Available
28
Fork
GU95740175
£65,20 Unit Price incl. VAT
29
Spring washer
GU95129130
£10,73 Unit Price incl. VAT
30
Washer 7,5x13x1
GU95100173
£0,95 Unit Price incl. VAT
31
pipe
GU28658560
Not Available
32
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
33
Gasket
GU25656100
£1,57 Unit Price incl. VAT
34
Valve
GU19668565
Not Available
35
Switch
GU63657000
£54,85 Unit Price incl. VAT
36
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
37
Special washer
GU61013800
£1,26 Unit Price incl. VAT
38
Pump revision kit
GU17659350
£96,00 Unit Price incl. VAT
39
Pads kit
GU14659450
Not Available
40
Safety plate
GU95184014
£4,78 Unit Price incl. VAT

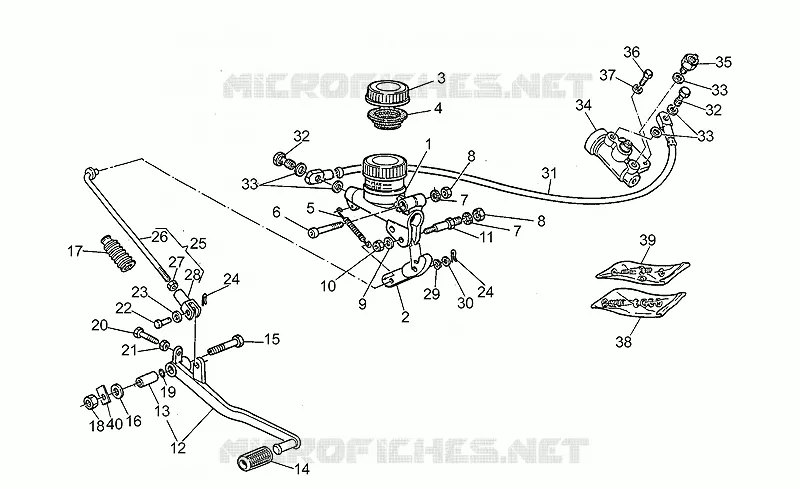

Find the detailed Rear master cylinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
