Front LH/rear brake system for MOTO GUZZI LAVERDA SCARABEO Strada from 1993

Free shipping for all orders to United Kingdom over £150! See conditions.

Front LH/rear brake system

1

Brake caliper

GU28652301

Not Available

2

pipe

GU28657560

£50,69 Unit Price incl. VAT

3

Rubber spacer

GU91551131

£2,16 Unit Price incl. VAT

4

Oil pipe screw *

GU95990028

£14,99 Unit Price incl. VAT

5

Gasket

GU25656100

£1,57 Unit Price incl. VAT

6

screw 25 mm

GU98622525

£2,04 Unit Price incl. VAT

7

Washer 10,5X18X0,8

GU95129180

£1,02 Unit Price incl. VAT

9

pipe

GU28658760

£19,85 Unit Price incl. VAT

10

Piston ring

GU17659650

£0,80 Unit Price incl. VAT

11

Eyelet

GU28659750

£7,44 Unit Price incl. VAT

12

Ring

GU91551120

£1,38 Unit Price incl. VAT

14

Hose clamp

GU17658360

Not Available

15

Ring

GU17658260

£1,58 Unit Price incl. VAT

16

Flexible pipe

GU28658840

Not Available

17

Bleeder+cap

GU17659260

£33,50 Unit Price incl. VAT

18

screw 25 mm

GU98622525

£2,04 Unit Price incl. VAT

19

Washer 10,5X18X0,8

GU95129180

£1,02 Unit Price incl. VAT

20

Plug

GU23943510

£3,34 Unit Price incl. VAT

21

RH front brake caliper

GU28653001

Not Available

22

Rear brake caliper support

GU28635800

Not Available

23

Pads (pair) Frendo 222

GU28654601

£26,81 Unit Price incl. VAT

24

Brake caliper cover

GU17654760

Not Available

25

Brake caliper rev. kit

GU14659000

£58,19 Unit Price incl. VAT

26

Pins+Caliper springs

GU14659100

£17,95 Unit Price incl. VAT

27

Clearance washer 0,5 mm

GU95100332

£1,42 Unit Price incl. VAT

27

Clearance washer 0,8 mm

GU95100333

£0,52 Unit Price incl. VAT

28

screw

GU98280410

£0,92 Unit Price incl. VAT

29

Nut M4x0,7

GU92630104

£0,96 Unit Price incl. VAT

30

Hex screw

GU98054316

£0,49 Unit Price incl. VAT

31

Washer

GU95000206

£1,02 Unit Price incl. VAT

32

Nut M6x1

GU92630106

£5,03 Unit Price incl. VAT

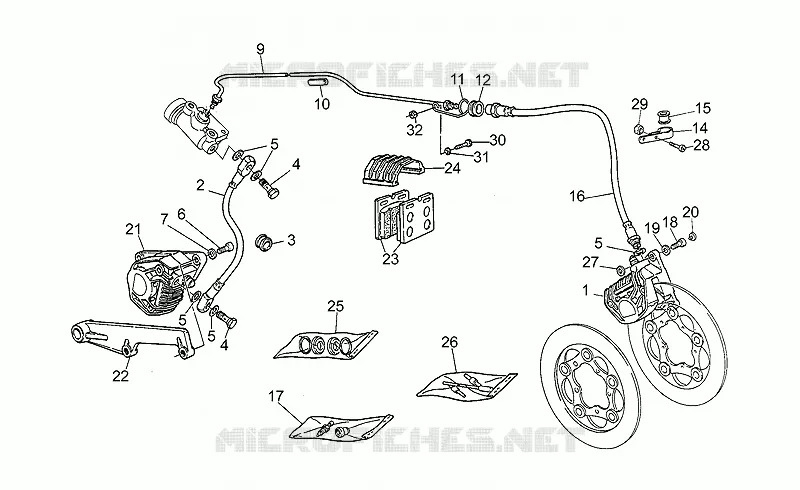

Find the detailed Front LH/rear brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
