Engine displacement
1000
2
Model
STRADA
3
Year
1993
4
Trim
Strada
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Transmission cage
by
Cylinder head
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
Valves cover, stain.
GU29023550
Not Available
2
Washer 15,2x26x0,5
GU10032700
£1,25 Unit Price incl. VAT
3
Cover gasket
GU14023760
£9,22 Unit Price incl. VAT
4
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
5
RH head
GU30022110
Not Available
5
RH head
GU29022122
Not Available
6
LH head
GU30022210
Not Available
6
LH head
GU29022222
Not Available
7
Intake valve guide
GU14036860
£46,54 Unit Price incl. VAT
7
Exhaust valve guide
GU13036801
£59,48 Unit Price incl. VAT
8
Snap ring
GU90353016
£1,02 Unit Price incl. VAT
9
Gasket
GU14022065
£20,50 Unit Price incl. VAT
10
Cylinder with piston assy., RH
GU30060110
Not Available
11
Gasket
GU14020865
£5,98 Unit Price incl. VAT
12
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
13
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
14
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
15
Column nut
GU13021900
£15,36 Unit Price incl. VAT
16
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
17
Stud bolt
GU12021800
£35,70 Unit Price incl. VAT
18
Stud bolt
GU12021700
Not Available
19
Washer 10,5X21X1
GU14018400
£1,26 Unit Price incl. VAT
20
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
21
Intake valve
GU30036010
£24,23 Unit Price incl. VAT
22
Exhaust valve
GU30036110
£79,04 Unit Price incl. VAT
23
Washer 14,2x31x1
GU13037200
£2,75 Unit Price incl. VAT
24
Washer 14,2x31x0,3
GU14037300
£2,26 Unit Price incl. VAT
25
Lower cup
GU13037000
£11,89 Unit Price incl. VAT
26
Outer spring
GU13037400
£15,92 Unit Price incl. VAT
27
Inner spring
GU13037600
£17,58 Unit Price incl. VAT
28
Upper cup
GU14038000
£28,34 Unit Price incl. VAT
29
Valve half-cone
GU12038100
£12,37 Unit Price incl. VAT
30
RH rocker arm assy
GU14030200
Not Available
31
LH rocker arm assy
GU14030400
Not Available
32
Bushing 15x18x43
GU91111511
£53,51 Unit Price incl. VAT
33
Adjuster screw
GU17034050
£15,18 Unit Price incl. VAT
34
Nut
GU10034100
£13,40 Unit Price incl. VAT
35
Spring
GU94322215
£10,33 Unit Price incl. VAT
36
Washer 15,2x26x1
GU90118152
£12,17 Unit Price incl. VAT
37
Rocker shaft
GU12031800
Not Available
38
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
39
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
40
Rocker arm support
GU14034865
£54,23 Unit Price incl. VAT
41
Stud bolt
GU96508042
Not Available
42
Cylinder with piston assy., LH
GU30060111
£1 345,43 Unit Price incl. VAT
43
Washer 6,15x11x0,8
GU95004206
Not Available
44
Anti-vibration plate
GU19025300
£3,41 Unit Price incl. VAT

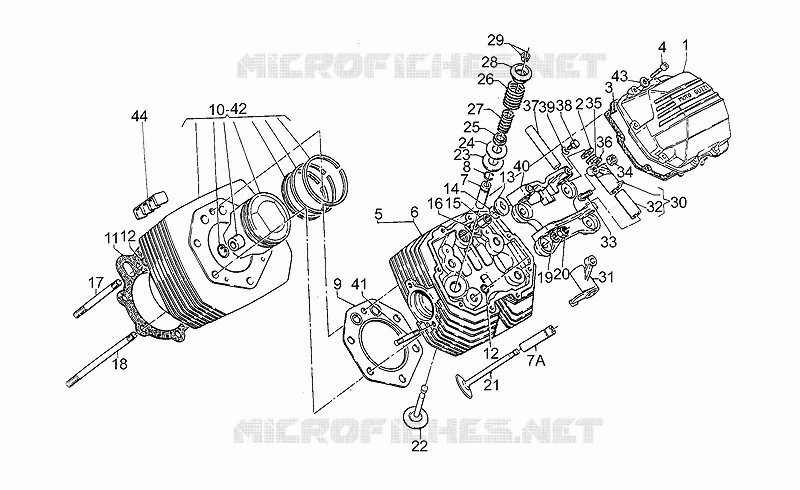

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
