1
Engine displacement
1000
2
Model
STRADA
3
Year
1993
4
Trim
Strada
5
Parts Catalog
Front mudguard-rear fairing
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Footrests-Stands
Front mudguard-rear fairing
1
2
3
4
5
6
7
8
8
8
9
10
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Front mudguard
GU30434412
Not Available
1
Front mudguard
GU304344101
Not Available
1
Front mudguard
GU30434482
Not Available
1
Front mudguard
GU30434483
Not Available
1
Front mudguard
GU30434481
Not Available
2
screw
GU98230816
£1,58 Unit Price incl. VAT
3
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
4
Plate
GU28436747
Not Available
5
Splash guard
GU14438700
Not Available
6
Cover
GU93180080
£1,98 Unit Price incl. VAT
7
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
8
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
9
U-bolt
GU93301313
£74,62 Unit Price incl. VAT
10
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
11
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
12
Washer 6,15x11x0,8
GU95004206
Not Available
13
screw
GU98054325
Not Available
14
Rear mudguard
GU30437110
Not Available
15
Ring
GU93110135
Not Available
16
Shock abs. adj. Wrench
GU28912740
Not Available
17
Toolkit
GU28929940
Not Available
18
Operator's handbook
GU30900010
Not Available
18
Operator's handbook
GU30900013
Not Available
18
Operator's handbook
GU30900012
Not Available
18
Operator's handbook
GU30900011
Not Available
19
Owner's manual
GU30900080
Not Available
20
Reflector support
GU28475233
Not Available
21
Rivet
GU91862408
Not Available
22
Rear reflector
GU28745800
Not Available
23
Washer
GU95129080
£0,34 Unit Price incl. VAT
24
Nut
GU92602204
Not Available

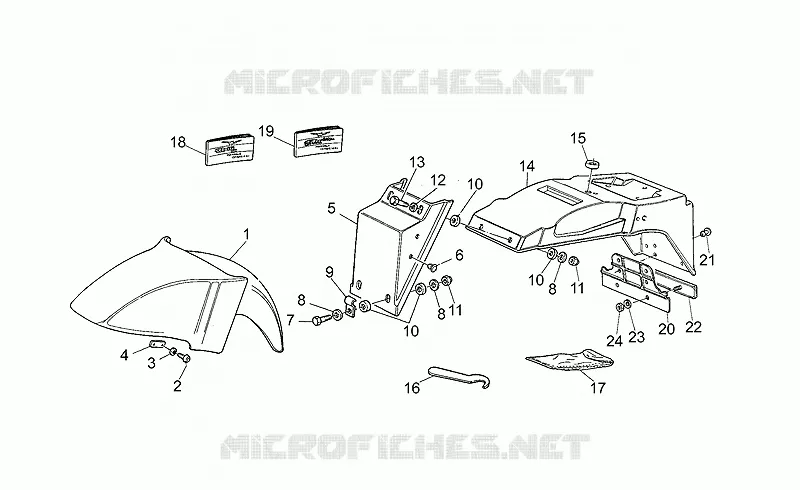

Find the detailed Front mudguard-rear fairing MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
