Parts Catalog
Transmission complete II
6
Parts Diagram
Parts Catalog
Front fork
by
Fuel pump
Transmission complete II
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Transmission complete black
GU02350250
Not Available
2
Transmission housingblack
GU02350350
£576,41 Unit Price incl. VAT
3
Ring nut
GU04358700
£16,27 Unit Price incl. VAT
4
Hex socket screw M6x12
GU98682312
£1,02 Unit Price incl. VAT
5
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
6
Oil plug
GU01351230
£25,00 Unit Price incl. VAT
7
Gasket
GU01154230
£2,34 Unit Price incl. VAT
8
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
9
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
10
Gasket ring 38X50X7
GU90413850
£38,47 Unit Price incl. VAT
11
Circlip
GU90353040
£2,64 Unit Price incl. VAT
12
Roller bearing 40X45X55
GU92234055
£47,08 Unit Price incl. VAT
13
Nut
GU04356700
£12,46 Unit Price incl. VAT
14
Bearing 25X62X25,4
GU92201926
Not Available
15
Spacer
GU04356800
£48,29 Unit Price incl. VAT
16
O-ring 61,60X2,62
GU90706616
£16,14 Unit Price incl. VAT
17
Gasket ring 32X52X7
GU90403257
£12,08 Unit Price incl. VAT
18
Ring nut
GU04354900
£87,00 Unit Price incl. VAT
19
Spacer 1,8 mm
GU04355303
£12,26 Unit Price incl. VAT
19
Spacer 1,5 mm
GU04355300
£2,87 Unit Price incl. VAT
19
Spacer 1,7 mm
GU04355302
£12,26 Unit Price incl. VAT
19
Spacer 1,6 mm
GU04355301
£12,26 Unit Price incl. VAT
19
Spacer 1,9 mm
GU04355304
£12,26 Unit Price incl. VAT
20
screw
GU19357660
£1,02 Unit Price incl. VAT
21
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
22
Roller bearing 12X24X16
GU92231216
£62,35 Unit Price incl. VAT
23
Flange
GU04350400
£34,61 Unit Price incl. VAT
24
O-ring 158,42X2,62
GU90706958
£3,44 Unit Price incl. VAT
25
Spacer 0,7 mm
GU04355101
£21,19 Unit Price incl. VAT
25
Spacer 1,2 mm
GU04355106
£16,84 Unit Price incl. VAT
25
Spacer 0,6 mm
GU04355100
£19,32 Unit Price incl. VAT
25
Spacer 1,1 mm
GU04355105
£17,92 Unit Price incl. VAT
25
Spacer 0,8 mm
GU04355102
£20,34 Unit Price incl. VAT
25
Spacer 0,9 mm
GU04355103
£17,09 Unit Price incl. VAT
25
Spacer 1 mm
GU04355104
£18,61 Unit Price incl. VAT
26
Bearing 80X125X14
GU92208014
£262,46 Unit Price incl. VAT
27
Gasket ring 70X85X8
GU90417085
£65,04 Unit Price incl. VAT
28
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
29
Bevel gear 11/32
GU01354630
£1 550,09 Unit Price incl. VAT
30
Roller cage 30x37x16
GU92253037
Not Available
31
Ring 25x30x18
GU92259030
Not Available
32
Washer
GU02351950
£32,54 Unit Price incl. VAT
33
Breather plug
GU19206501
£16,73 Unit Price incl. VAT
34
Ball bearing 25x52x15
GU92205227
£31,73 Unit Price incl. VAT
35
Securing flange
GU04353801
£46,20 Unit Price incl. VAT
36
screw M6x14
GU98280614
£1,68 Unit Price incl. VAT
37
Spacer
GU02356950
Not Available

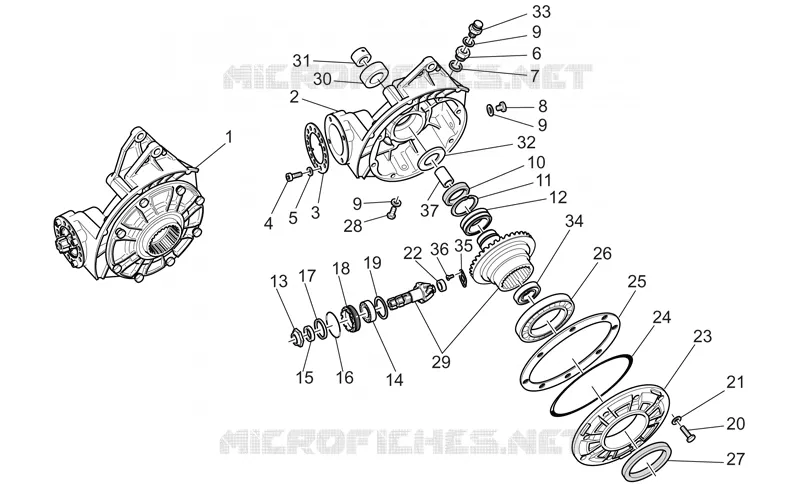

Find the detailed Transmission complete II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
