Parts Catalog
Cylinder head and valves
6
Parts Diagram
Parts Catalog
Fairing assy
by
Transmission cage
Cylinder head and valves
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
RH cylinder head, black
GU02022150
Not Available
2
LH cylinder head, black
GU02022250
Not Available
3
Valve guide
GU30036800
£61,74 Unit Price incl. VAT
4
Intake valve
GU02036051
£91,87 Unit Price incl. VAT
5
Exhaust valve
GU02036151
£35,76 Unit Price incl. VAT
6
Snap ring
GU90353024
£6,34 Unit Price incl. VAT
7
Oil seal
GU30037800
£15,73 Unit Price incl. VAT
8
Spacer 1 mm
GU30037201
£1,46 Unit Price incl. VAT
9
Spacer 1,5 mm
GU30037202
£3,48 Unit Price incl. VAT
10
Lower cup
GU30037001
£17,15 Unit Price incl. VAT
11
Inner spring
GU30037601
£10,79 Unit Price incl. VAT
12
Outer spring
GU30037501
£10,12 Unit Price incl. VAT
13
Upper cup
GU30038001
£13,21 Unit Price incl. VAT
14
Half-cone
GU30038100
Not Available
15
Stud bolt
GU96451450
£19,92 Unit Price incl. VAT
16
Stud bolt
GU96451430
£5,36 Unit Price incl. VAT
17
Pin
GU95512063
£3,89 Unit Price incl. VAT
18
Stud bolt M8x37,5
GU96508038
£22,30 Unit Price incl. VAT
19
Cover
GU98450513
£12,16 Unit Price incl. VAT
20
O-ring
GU90706331
£13,27 Unit Price incl. VAT
21
Camshaft support
GU02002450
£173,32 Unit Price incl. VAT
22
Roller cage
GU92252033
£74,68 Unit Price incl. VAT
23
Gasket ring 25X40X7
GU90412541
£22,12 Unit Price incl. VAT
24
screw
GU98622320
£0,96 Unit Price incl. VAT
25
Washer 6,15x11x0,8
GU95004206
Not Available
26
Cylinder head gasket
GU02022050
Not Available
27
Support plate
GU30034800
£189,20 Unit Price incl. VAT
28
Rocker arms axis
GU30031800
£8,08 Unit Price incl. VAT
29
Thrust washer 1,2 mm
GU30032302
£2,69 Unit Price incl. VAT
29
Thrust washer 1 mm
GU30032300
£2,62 Unit Price incl. VAT
30
Circlip
GU90271012
£0,89 Unit Price incl. VAT
31
Tappet
GU30045740
£149,89 Unit Price incl. VAT
32
Washer 10,5x22x2,5
GU95008310
£2,48 Unit Price incl. VAT
33
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
34
O-ring
GU90706109
£10,21 Unit Price incl. VAT
35
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
36
Nut
GU92602008
Not Available
37
Rocker arm cpl.
GU30030200
£299,90 Unit Price incl. VAT
38
Bushing
GU30030801
£19,61 Unit Price incl. VAT
39
Rocker arm assy.
GU30030400
Not Available
40
Adjuster screw
GU30034000
£18,73 Unit Price incl. VAT
41
Nut
GU30034100
£12,77 Unit Price incl. VAT
42
Head cover, black
GU02023550
£227,62 Unit Price incl. VAT
43
Head cover gasket
GU30023700
£13,13 Unit Price incl. VAT
44
O-ring
GU90706361
£1,67 Unit Price incl. VAT
45
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
46
Hex socket screw
GU98620350
£1,58 Unit Price incl. VAT
47
Washer 6,15x11x0,8
GU95004206
Not Available
48
Valve lifter bucket
GU02045350
£42,42 Unit Price incl. VAT
49
Snap ring
GU90272035
£1,49 Unit Price incl. VAT
50
O-ring
GU90706076
£0,89 Unit Price incl. VAT
51
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT

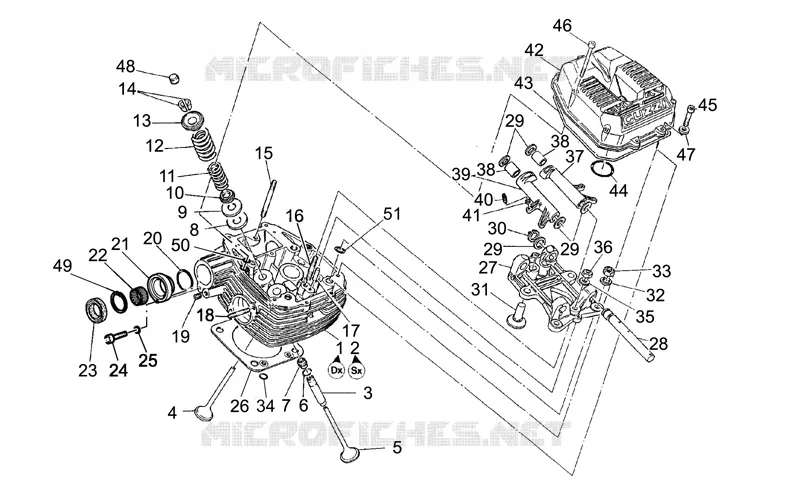

Find the detailed Cylinder head and valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
