Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Specific tools IV
by
Oil radiator
Throttle body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Throttle body
GU02112550
Not Available
2
Injector IW724
GU30530500
Not Available
3
Washer
GU95020104
Not Available
4
screw
GU98200410
£1,68 Unit Price incl. VAT
5
Throttle body sensor
GU30530501
£219,20 Unit Price incl. VAT
6
Maintenance
GU02110550
£28,85 Unit Price incl. VAT
7
RH intake manifold, black
GU02115050
£1 193,38 Unit Price incl. VAT
8
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
9
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
10
Gasket ring
GU90706552
£1,20 Unit Price incl. VAT
11
LH intake manifold, black
GU02115051
£1 193,38 Unit Price incl. VAT
12
Washer 6,15x11x0,8
GU95004206
Not Available
13
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
14
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
15
screw
GU98310610
£1,61 Unit Price incl. VAT
16
Clamp
GU12548401
£15,95 Unit Price incl. VAT
17
Intake hose
GU02114350
Not Available
18
Hose clamp 62/82 mm
GU12548201
Not Available
19
Intake hose
GU01114450
£10,84 Unit Price incl. VAT
20
Sparkplug caps kit
GU02999200
£45,89 Unit Price incl. VAT

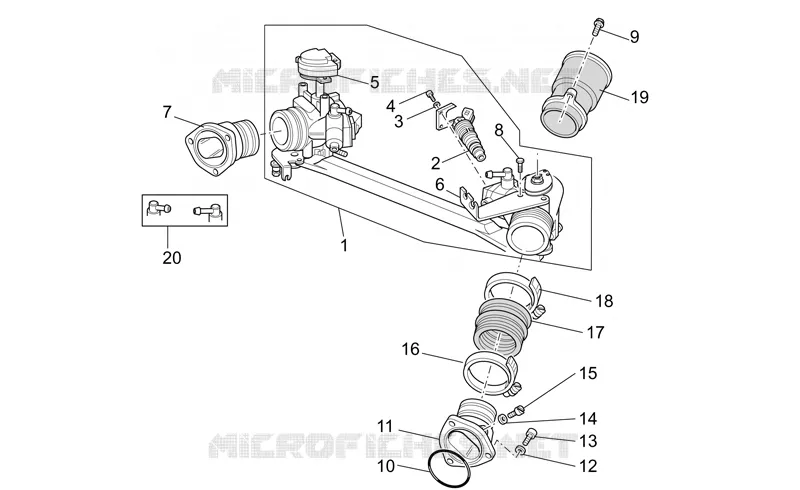

Find the detailed Throttle body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
