Parts Catalog
Windshield
6
Parts Diagram
Parts Catalog
Electrical system II
by
Front wheel
Windshield
1
2
2
3
3
4
4
5
6
6
7
7
8
9
10
11
12
13
13
14
14
15
1
Windshield, red
GU02575451
Not Available
2
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
3
Nylon washer 6X17X1
GU66478610
£1,70 Unit Price incl. VAT
4
Antivibration bush M6
GU93231606
£1,79 Unit Price incl. VAT
5
Windscreen
GU02577250
Not Available
6
Hex socket screw M4x12
GU98370412
£1,26 Unit Price incl. VAT
7
Nylon washer
AP8144565
£1,27 Unit Price incl. VAT
8
Antivibration bush M4x7,9x12,7
GU93231604
£8,03 Unit Price incl. VAT
9
Fixing pin 6x12
GU97250620
£22,14 Unit Price incl. VAT
10
Nylon washer 6x12x0,5
GU02577850
Not Available
11
Special clip
GU97240600
£10,73 Unit Price incl. VAT
12
Windshield decal
AP8215325
Not Available
13
screw
GU98370515
£2,36 Unit Price incl. VAT
14
Washer
GU30577801
£1,20 Unit Price incl. VAT
15
Flanged nut
GU92650035
£2,35 Unit Price incl. VAT

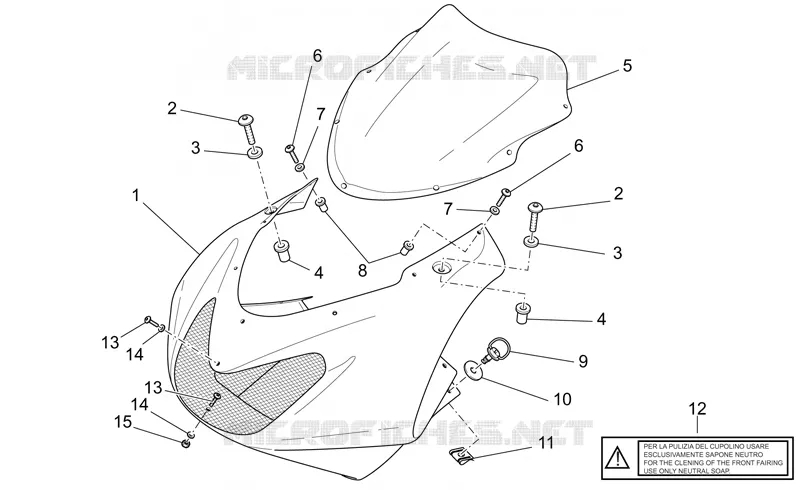

Find the detailed Windshield MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
