1
Engine displacement
1200
2
Model
MGS-01
3
Year
2006
4
Trim
MGS-01 Corsa
5
Parts Catalog
Gear lever
6
Parts Diagram
Parts Catalog
Oil filter
by
Exhaust unit
Gear lever
1
2
3
3
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
1
Gear lever
GU02250850
£432,94 Unit Price incl. VAT
2
Ball bearing 608 2RS
GU92201008
£12,23 Unit Price incl. VAT
3
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
4
Shift lever
GU01256932
£69,62 Unit Price incl. VAT
5
screw
GU98632322
£1,02 Unit Price incl. VAT
6
Snap ring
GU90280009
£0,35 Unit Price incl. VAT
7
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
8
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
9
Hex socket screw
GU98350318
£0,96 Unit Price incl. VAT
10
Hex socket screw M6x22
GU98350325
£1,02 Unit Price incl. VAT
11
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
12
Nut M6
GU92640406
£2,47 Unit Price incl. VAT
13
Ball joint
GU02258150
Not Available
14
Nut M6
GU03256800
£1,26 Unit Price incl. VAT
15
Change gear tie rod compl.
GU02257850
£306,22 Unit Price incl. VAT
16
Nut M6
GU92609206
£2,47 Unit Price incl. VAT
17
Ball joint
GU02258151
£63,01 Unit Price incl. VAT
18
Special washer
GU61013800
£1,26 Unit Price incl. VAT

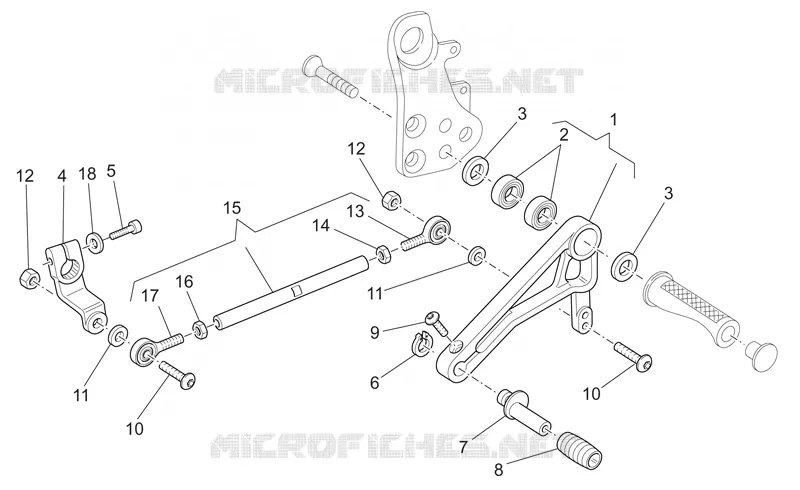

Find the detailed Gear lever MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
