Engine displacement
1200
2
Model
MGS-01
3
Year
2006
4
Trim
MGS-01 Corsa
5
Parts Catalog
Transmission complete I
6
Parts Diagram
Parts Catalog
Steering
by
Foot rests
Transmission complete I
1
2
2
3
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
1
Drive shaft
GU02358750
£1 079,88 Unit Price incl. VAT
2
screw
GU98832430
£10,73 Unit Price incl. VAT
3
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
4
Reaction rod
GU02358950
£58,84 Unit Price incl. VAT
5
Nut M14x2
GU02359350
Not Available
6
Ball joint M14
GU02359250
Not Available
7
Nut M12X1,75
GU92602212
£0,98 Unit Price incl. VAT
8
Ball joint M12
GU30359200
£188,95 Unit Price incl. VAT
9
Bushing
GU91121015
£21,11 Unit Price incl. VAT
10
screw M10x69
GU30357800
Not Available
11
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
12
Nut M10x1,25
GU92630410
£1,58 Unit Price incl. VAT
13
Outer plate black
GU01351090
£40,38 Unit Price incl. VAT
14
screw
GU04558700
£13,80 Unit Price incl. VAT
15
Washer 12,2X20X2
GU95008213
£1,98 Unit Price incl. VAT
16
screw M14x180
GU98680791
£10,27 Unit Price incl. VAT
17
Washer 15x28x1,6
GU95129314
£8,02 Unit Price incl. VAT
18
Nut M14x2
GU92609214
£10,21 Unit Price incl. VAT
19
Spacer 14,2x22x7
GU02359450
£27,65 Unit Price incl. VAT

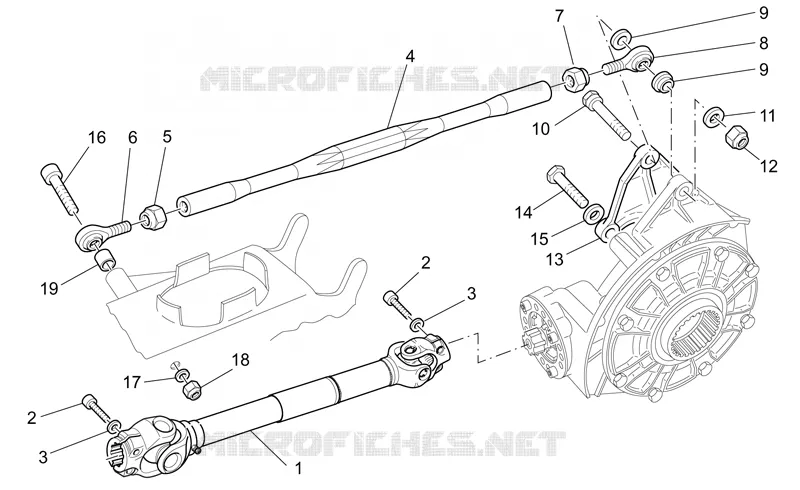

Find the detailed Transmission complete I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
