Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Drive shaft
by
Fuel tank
Rear wheel
1
3
4
5
5
5
6
6
7
8
8
9
9
10
10
10
11
11
12
13
14
14
15
16
17
18
19
20
1
Tyre
0000000
Not Available
2
Rear wheel 5,50x17"
GU02630550
£3 238,09 Unit Price incl. VAT
3
Rear brake disc
AP8113612
Not Available
4
Flexible coupling disc
GU02335250
Not Available
5
Pin
GU02335450
Not Available
6
Flexible coupling rubber
AP8125731
Not Available
7
Rear wheel spindle
AP8125831
Not Available
8
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
9
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
10
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
11
Bearing 25x47x12
AP8110094
£6,56 Unit Price incl. VAT
12
Internal spacer
GU02634050
Not Available
13
Spacer
GU02634150
£26,98 Unit Price incl. VAT
14
Ball bearing 30x47x9
GU92201031
£54,28 Unit Price incl. VAT
15
Spacer 25,2x31x8,5
GU91182531
£20,99 Unit Price incl. VAT
16
Spacer 25,2x31x1,5
GU02633550
£20,81 Unit Price incl. VAT
17
Tubeless tyre valve 90°
AP8104728
£18,78 Unit Price incl. VAT
18
Washer 25,2X36X1
GU95005325
£7,60 Unit Price incl. VAT
19
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
20
Counterweight
GU14616150
£18,94 Unit Price incl. VAT

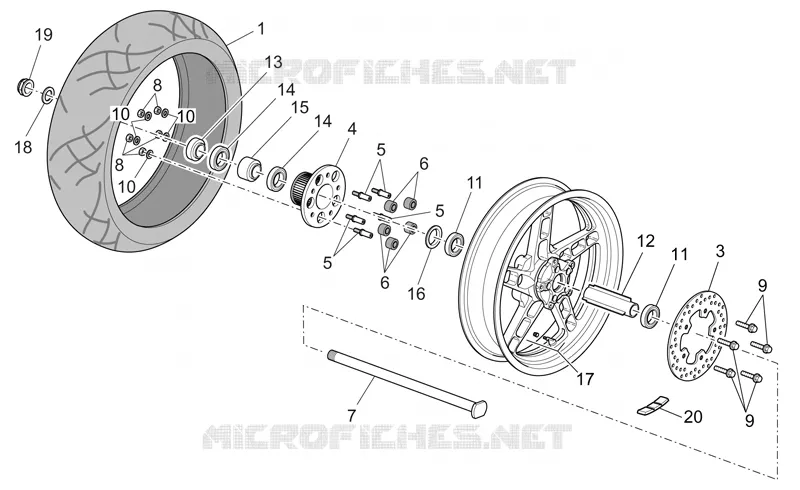

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
