1
Engine displacement
1200
2
Model
MGS-01
3
Year
2006
4
Trim
MGS-01 Corsa
5
Parts Catalog
Oil filter
6
Parts Diagram
Parts Catalog
Pillar
by
Gear lever
Oil filter
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Oil filter
GU30153000
£18,98 Unit Price incl. VAT
2
Oil filter union
GU30003800
£46,69 Unit Price incl. VAT
3
Oil filter
GU01152200
£8,22 Unit Price incl. VAT
4
Plate
GU95187006
£3,68 Unit Price incl. VAT
5
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
6
Maintenance
GU01003801
Not Available
7
screw
GU98620340
£0,61 Unit Price incl. VAT
8
Washer 6,15x11x0,8
GU95004206
Not Available
9
Hose union
GU01005500
£15,80 Unit Price incl. VAT
10
O-ring 13,95x2,92
GU90706140
£1,25 Unit Price incl. VAT
11
pipe
GU01005701
£23,08 Unit Price incl. VAT
12
Piston
GU02164151
£62,39 Unit Price incl. VAT
13
Valve body
GU30158701
£81,37 Unit Price incl. VAT
14
Piston
GU30150900
£38,18 Unit Price incl. VAT
15
Spring
GU94321079
£30,52 Unit Price incl. VAT
16
Washer 6,15x11x0,8
GU95004206
Not Available
17
Washer
GU30158900
£8,10 Unit Price incl. VAT
18
Cup
GU30158800
£10,73 Unit Price incl. VAT
19
Washer 18,25x24x1
GU18144350
£6,66 Unit Price incl. VAT
20
Cover
GU30159000
Not Available
21
Clutch spring
GU13084100
£8,09 Unit Price incl. VAT
22
Cover
GU01163600
£77,40 Unit Price incl. VAT

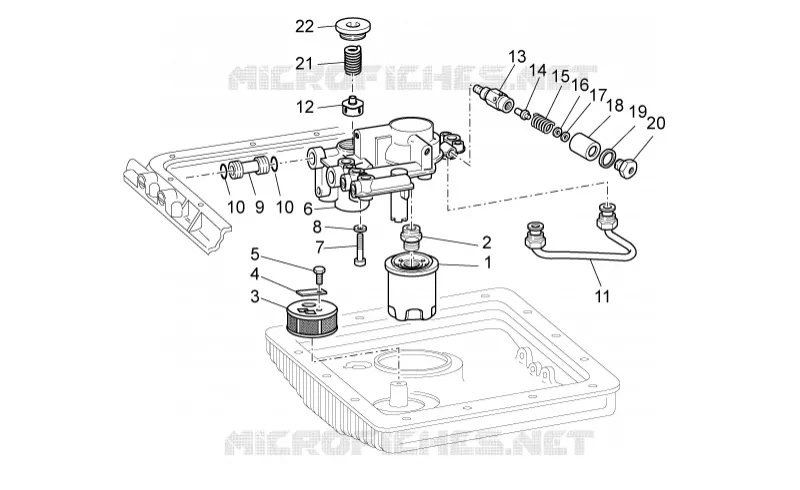

Find the detailed Oil filter MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
