Engine displacement
1200
2
Model
MGS-01
3
Year
2006
4
Trim
MGS-01 Corsa
5
Parts Catalog
Fuel pump
6
Parts Diagram
Parts Catalog
Transmission complete II
by
Steering
Fuel pump
1
2
3
3
4
4
5
5
6
7
8
9
10
11
11
12
13
13
1
Fuel pump cpl.
GU02107250
£1 047,82 Unit Price incl. VAT
2
Coupling
GU02106650
£21,35 Unit Price incl. VAT
3
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
4
Fuel pipe SAEJ30R9
GU00823952080
£84,76 Unit Price incl. VAT
5
Hose clamp
GU19157800
Not Available
6
Fuel pump support
AP8134712
£13,52 Unit Price incl. VAT
7
Self-locking nut M5
AP8152306
Not Available
8
Gasket
AP8144422
£15,50 Unit Price incl. VAT
9
Fuel pump flange
AP8134706
Not Available
10
Gasket
AP8144421
£12,48 Unit Price incl. VAT
11
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
12
Pressure valve
GU01102520
£42,11 Unit Price incl. VAT
13
Hose clip 12,5x8
GU28157950
£2,64 Unit Price incl. VAT

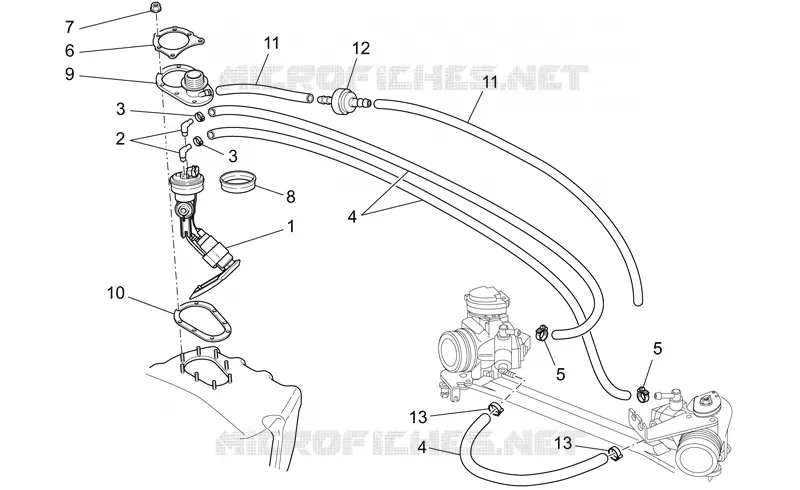

Find the detailed Fuel pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
