Engine displacement
1200
2
Model
MGS-01
3
Year
2006
4
Trim
MGS-01 Corsa
5
Parts Catalog
Frame II
6
Parts Diagram
Parts Catalog
Timing system I
by
Front fork
Frame II
1
2
2
2
3
4
5
1
Rear frame
GU02410250
Not Available
2
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
3
Rubber spacer
GU93180117
£5,05 Unit Price incl. VAT
4
Tearing rivet
GU17918556
£0,78 Unit Price incl. VAT
5
Special clip
GU97240601
£13,39 Unit Price incl. VAT

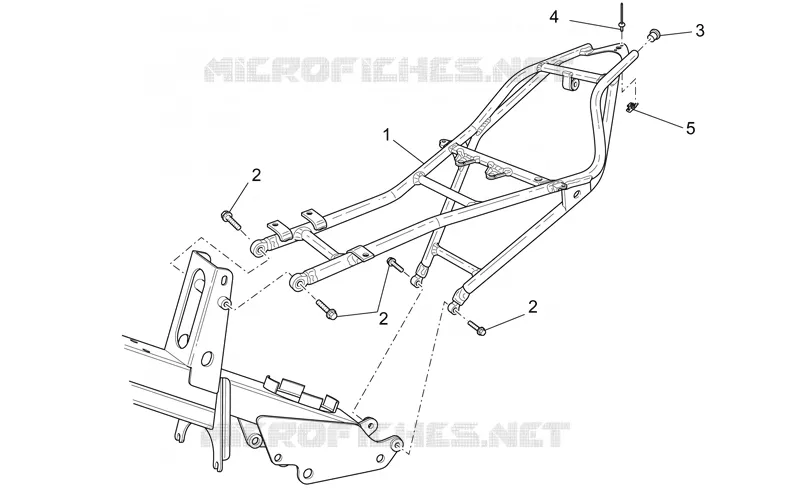

Find the detailed Frame II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
