Engine displacement
1200
2
Model
MGS-01
3
Year
2006
4
Trim
MGS-01 Corsa
5
Parts Catalog
Frame I
6
Parts Diagram
Parts Catalog
Clutch
by
Fairing assy
Frame I
1
2
3
4
4
4
4
5
5
6
6
7
8
9
10
10
11
12
13
14
15
15
16
17
18
18
19
19
20
21
22
23
24
25
26
1
Frame
GU02400150
Not Available
2
Intake opening
GU02116950
Not Available
3
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
4
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
5
Plate
GU02101150
£35,44 Unit Price incl. VAT
6
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
7
Rubber spacer
GU32461610
Not Available
8
Instrum.holder frame
GU02420250
Not Available
9
Hex socket screw M8x60
GU98680460
£5,28 Unit Price incl. VAT
10
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
11
Nut M8
GU92640708
£2,47 Unit Price incl. VAT
12
Bracket
GU02768850
£82,45 Unit Price incl. VAT
13
Hex screw
GU98084110
£2,35 Unit Price incl. VAT
14
Nut M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
15
Bushing
GU02510750
£65,84 Unit Price incl. VAT
16
Hex socket screw M8x20
GU98682420
£1,02 Unit Price incl. VAT
17
Hex socket screw M6x30
GU98350330
£2,47 Unit Price incl. VAT
18
Nut
GU92606206
£1,02 Unit Price incl. VAT
19
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
20
Hex socket screw M12X30
GU98682630
Not Available
21
Hex socket screw M10x105
AP8152013
£14,32 Unit Price incl. VAT
22
Washer 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
23
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
24
Fuel pipe 6x10
AP8144038
£38,70 Unit Price incl. VAT
25
Hose clamp D9
GU61108500
£0,96 Unit Price incl. VAT
26
Plug
AP8120876
£8,23 Unit Price incl. VAT
27
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT

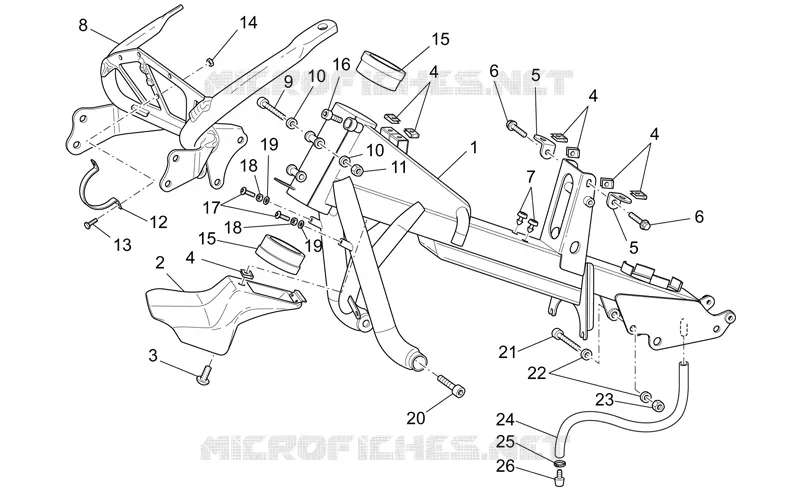

Find the detailed Frame I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
