Parts Catalog
Clutch shaft
6
Parts Diagram
Parts Catalog
Timing system
by
Foot rests II
Clutch shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
1
Clutch shaft
GU05210731
£74,99 Unit Price incl. VAT
2
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
3
Ball bearing 25x52x15
GU92201226
£50,18 Unit Price incl. VAT
4
Gasket ring 35x47x7
GU90403549
£33,61 Unit Price incl. VAT
5
Clutch gear
GU05081830
£203,29 Unit Price incl. VAT
6
Washer 22x20x3,9
GU95028022
£2,04 Unit Price incl. VAT
7
Ring nut
GU93601022
£48,91 Unit Price incl. VAT
8
Idle gear Z=24
GU06211100
£229,70 Unit Price incl. VAT
9
Snap ring 25x2
GU90271125
£5,23 Unit Price incl. VAT
10
Hose
GU05211231
£239,29 Unit Price incl. VAT
11
Washer
GU95129340
£16,01 Unit Price incl. VAT
12
Disc
GU05211030
£81,67 Unit Price incl. VAT
13
Belleville spring
GU05211530
£16,04 Unit Price incl. VAT
14
Disc
GU05211630
£61,15 Unit Price incl. VAT
15
Half ring
GU12211700
£11,64 Unit Price incl. VAT
16
Roller bearing 20x28x13
GU92232028
£46,20 Unit Price incl. VAT
17
Snap ring 28x30,1
GU90272028
£1,26 Unit Price incl. VAT

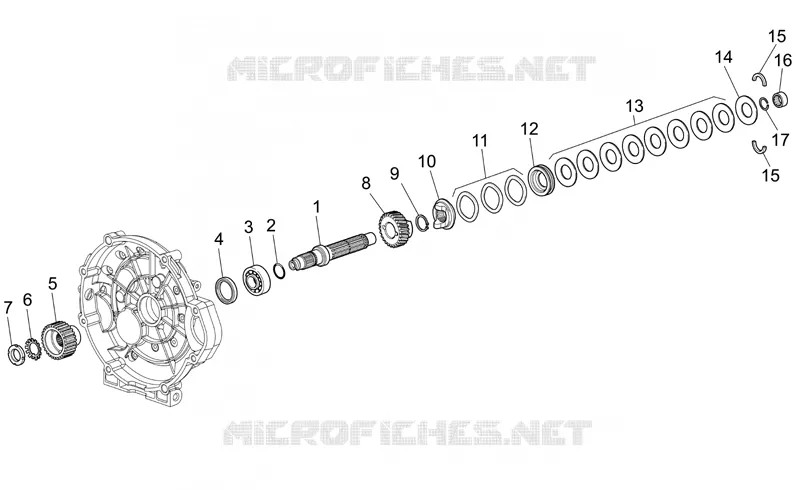

Find the detailed Clutch shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
