Engine displacement
1100
2
Model
GRISO
3
Year
2006
4
Trim
Griso V IE
5
Parts Catalog
Transmission complete
6
Parts Diagram
Parts Catalog
Oil filters
by
Trans.cpl.-Cage
Transmission complete
1
2
3
3
4
4
4
5
5
6
7
8
1
Transmission assygrey
GU400122400100
£2 273,69 Unit Price incl. VAT
2
Reaction rod assy.
GU05358830
Not Available
3
Screw w/ flange M10x55
AP8152410
£13,28 Unit Price incl. VAT
4
Spacer 10,2x20x4
AP8121218
£18,83 Unit Price incl. VAT
5
Nut
AP8152242
£17,48 Unit Price incl. VAT
6
Drive shaft
GU05326330
£914,10 Unit Price incl. VAT
7
Silent-block
883045
£34,67 Unit Price incl. VAT
8
Washer 10,5X21X1
GU14018400
£1,26 Unit Price incl. VAT

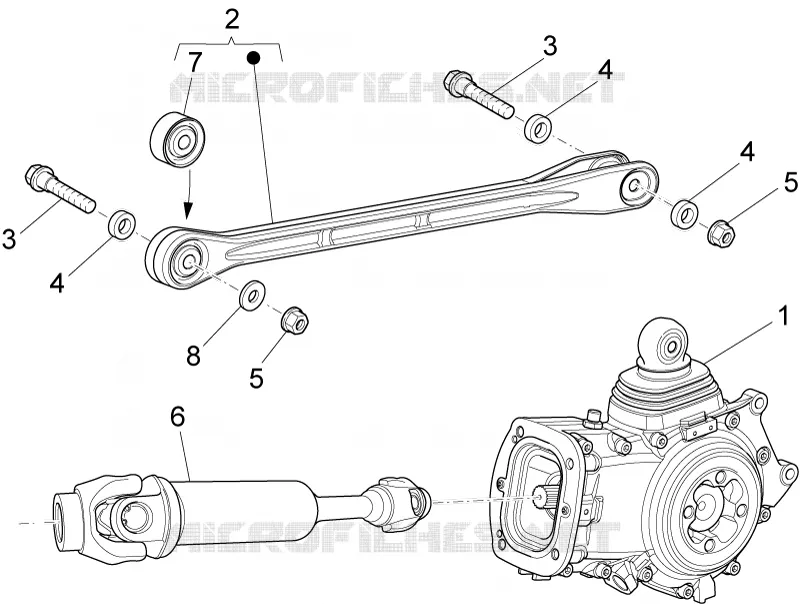

Find the detailed Transmission complete MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
