Engine displacement
1100
2
Model
GRISO
3
Year
2006
4
Trim
Griso V IE
5
Parts Catalog
Steering
6
Parts Diagram
Parts Catalog
Clutch
by
Clutch control complete
Steering
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
1
Fork upper plate
GU06493100
£287,48 Unit Price incl. VAT
2
Stem base
GU06494000
£796,22 Unit Price incl. VAT
3
Return ring nut
AP8123643
£27,53 Unit Price incl. VAT
4
Steering security plate
AP8121207
£28,55 Unit Price incl. VAT
5
Ring nut
AP8123642
£25,34 Unit Price incl. VAT
6
Dust cover ring
AP8123644
£6,36 Unit Price incl. VAT
7
Dust cover ring
AP8123641
£13,74 Unit Price incl. VAT
8
Axial ball bearing
AP8110077
Not Available
9
Upper plate fixing bush
AP8121346
£52,52 Unit Price incl. VAT
10
Stem plug washer
AP8152384
£2,20 Unit Price incl. VAT
11
Screw M8x30
GU98700430
£7,98 Unit Price incl. VAT
12
Bushing 5,3x8x7,1
AP8221036
£0,73 Unit Price incl. VAT
13
Brake hose fixing plate
GU05658431
£16,96 Unit Price incl. VAT
14
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT

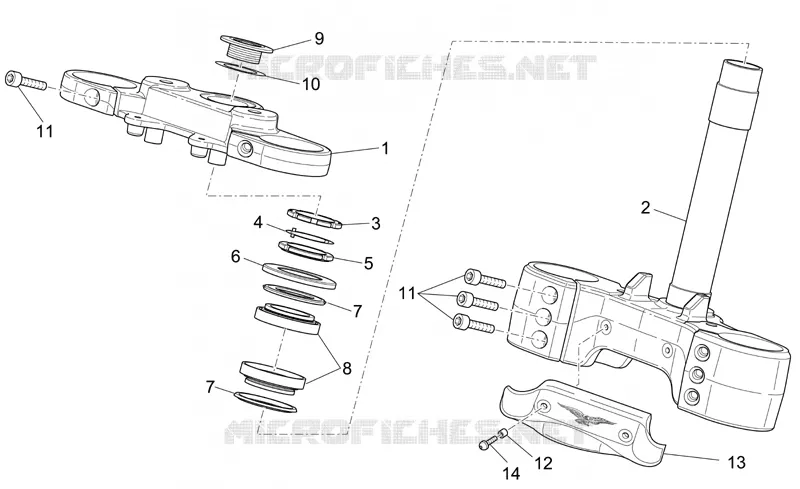

Find the detailed Steering MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
