1
Engine displacement
250
2
Model
SCARABEO
3
Year
2008
4
Trim
Scarabeo Light E3
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
RH controls
by
Fuel tank
Water cooler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
22
23
23
24
25
26
27
28
29
30
30
31
31
32
33
1
Water cooler
AP8104903
Not Available
2
Expansion tank
AP8179086
Not Available
3
Expansion tank support
AP8154082
Not Available
4
Tube de culasse radiateur
852178
£48,98 Unit Price incl. VAT
5
TUYAU POMPE RADIATEUR
852177
£86,04 Unit Price incl. VAT
6
Support
AP8154004
Not Available
7
Electric fan
AP8127818
Not Available
8
Entretoise
AP8221007
£1,88 Unit Price incl. VAT
9
Upper rubber
AP8144779
Not Available
10
Lower rubber
AP8144780
Not Available
11
Clip
AP8102375
£2,20 Unit Price incl. VAT
12
Vis bride
AP8152272
£1,88 Unit Price incl. VAT
13
Bouchon
AP8144777
£10,09 Unit Price incl. VAT
14
Rondelle
AP8150015
£1,88 Unit Price incl. VAT
15
Vis bride
AP8152279
£1,87 Unit Price incl. VAT
16
Douille
AP8121032
£3,88 Unit Price incl. VAT
17
Vis bride
AP8152272
£1,88 Unit Price incl. VAT
18
Clip
AP8102375
£2,20 Unit Price incl. VAT
19
Clip M6
AP8102376
Not Available
20
Vis bride
AP8152246
£4,03 Unit Price incl. VAT
21
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
22
COLLIER
CM001908
£2,06 Unit Price incl. VAT
23
COLLIER
CM001909
£1,88 Unit Price incl. VAT
24
Expansion tank plug
AP8144801
Not Available
25
Rondelle en aluminium
AP8121837
£1,86 Unit Price incl. VAT
26
Filler cap rubber
AP8152510
Not Available
27
Vis bride
AP8152246
£4,03 Unit Price incl. VAT
28
Collier clic
AP9100714
£2,34 Unit Price incl. VAT
29
Collier clic
AP8102903
£18,68 Unit Price incl. VAT
30
Tuyau reniflard radiateur
AP8144506
£28,10 Unit Price incl. VAT
31
Collier clic, blanc
AP8102765
£6,40 Unit Price incl. VAT
32
Spring
CM017802
Not Available
33
Collier, noir
AP8120416
£1,00 Unit Price incl. VAT

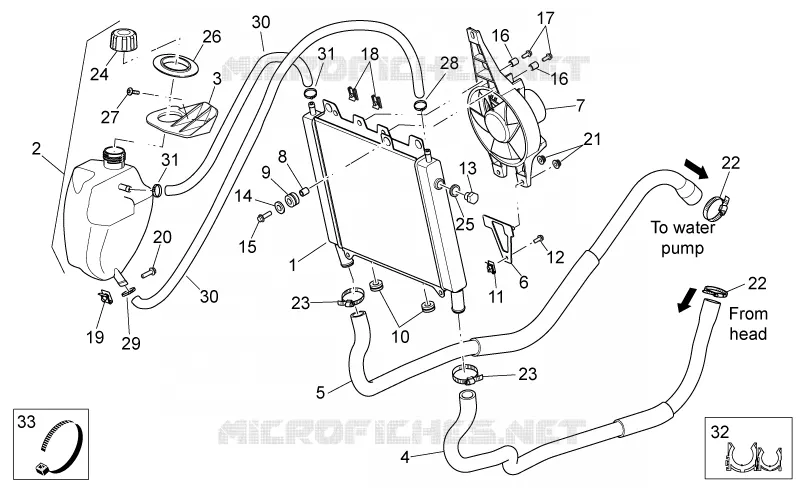

Find the detailed Water cooler MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
