Engine displacement
250
2
Model
SCARABEO
3
Year
2008
4
Trim
Scarabeo Light E3
5
Parts Catalog
Connecting rod
6
Parts Diagram
Parts Catalog
Frame
by
Foot rests
Connecting rod
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Engine connecting element cpl.
AP8145068
Not Available
2
Pivot Moteur
AP8145040
£12,31 Unit Price incl. VAT
3
Self-locking nut
AP8150570
Not Available
4
Self-locking nut
AP8150569
Not Available
5
Rod pin
AP8161190
Not Available
6
Silent-block supp.plate
AP8154101
Not Available
7
Circlip
AP8150571
Not Available
8
Self-locking nut
AP8150568
Not Available
9
Low nut M22x2
AP8150534
Not Available
10
Bush
AP8161221
Not Available
11
Frame coupling rod
AP8145061
Not Available
12
PIVOT
852326
£24,60 Unit Price incl. VAT
13
Spring
AP8161219
Not Available
14
Hex screw
AP8150581
Not Available
15
Spacer
AP8161217
Not Available
16
Spacer
AP8161220
Not Available

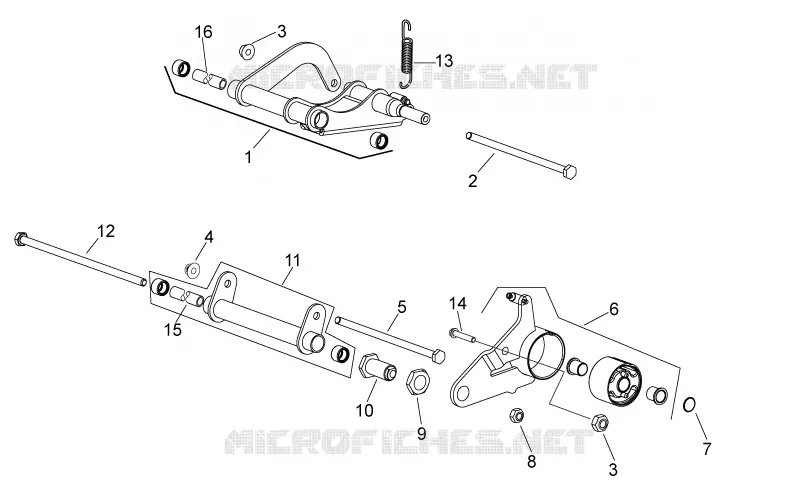

Find the detailed Connecting rod MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
