Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Cylinder
by
Timing system
Cylinder head
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
1
Exhaust pipe stud bolt
AP8550401
Not Available
2
Half-cone
AP8550508
Not Available
3
Cup
AP8580076
Not Available
4
Spring
AP8580160
Not Available
5
Valve gasket ring
AP8550326
Not Available
6
Cup
AP8580069
Not Available
7
Intake valve
AP8580078
Not Available
8
Exhaust valve
AP8577024
Not Available
9
Cylinder head gasket 0,3 mm
AP8577021
Not Available
10
Cylinder head assy.
AP8176321
Not Available
11
screw
AP8580086
Not Available
11
screw M6x110
AP8577009
Not Available
12
Locating dowel
AP8551015
Not Available
13
Dowel
AP8560016
Not Available
14
Exhaust pipe gasket
AP8580066
Not Available
15
Hex socket screw
AP8176289
Not Available
16
Thermostat cover
AP8176291
Not Available
17
Thermostat
82831R
Not Available
18
Thermistor
AP8176324
Not Available
19
Gasket
AP8176290
Not Available
20
O-ring
AP8575010
Not Available
21
screw
AP8176292
Not Available
22
Cap
AP8560010
Not Available

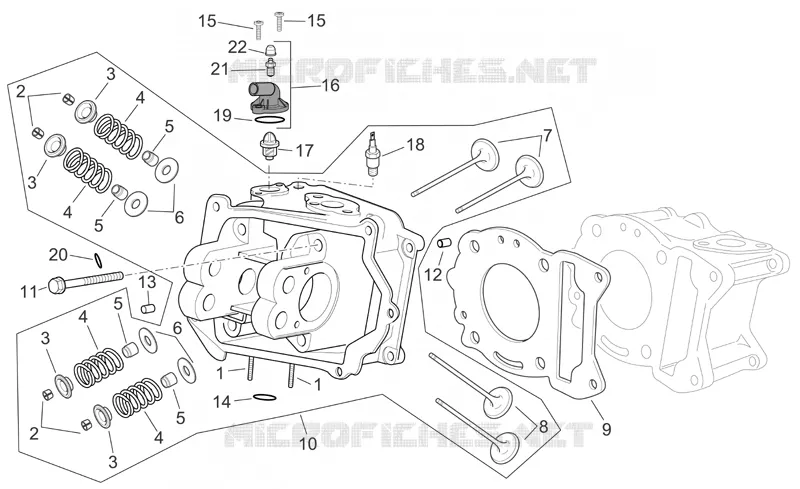

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
