Engine displacement
250
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light E3
5
Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Oil pump
by
Variator assembly
Transmission
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Driven pulley shaft
AP8577061
Not Available
2
Rear wheel axis cpl.
8407705
Not Available
3
Oil seal 38x50x7
AP8560125
Not Available
4
Circlip
AP8560130
Not Available
5
Bearing d15x42x13
AP8560019
Not Available
6
Transmission cover cpl.
AP8176274
Not Available
7
Bearing d30x55x13
AP8560126
Not Available
8
Gasket
AP8575022
Not Available
9
screw
AP8570077
Not Available
10
screw
AP8152493
Not Available
11
Hose clamp
AP8551044
Not Available
12
Hose clamp
AP8560022
Not Available
13
Transmission shaft
840768
Not Available
14
Breather
AP8176263
Not Available
15
Bearing
AP8570030
Not Available
16
Snap ring
AP8560007
Not Available
17
Gasket ring
AP8550577
Not Available

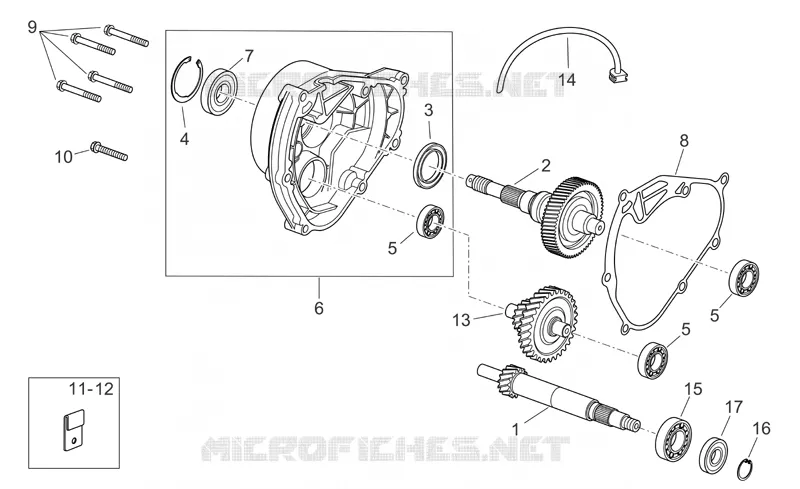

Find the detailed Transmission MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
