Engine displacement
250
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light E3
5
Parts Catalog
Central body
6
Parts Diagram
Parts Catalog
Front body III
by
Saddle unit
Central body
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
13
13
13
13
14
15
16
16
16
16
17
17
18
19
20
21
21
22
1
Grille
852950
£34,88 Unit Price incl. VAT
2
RH Floor panel, grey
AP8179116
Not Available
3
Repose-pieds G., gris
AP8179115
£30,02 Unit Price incl. VAT
4
RH mat, black
AP8184087
Not Available
5
LH mat, black
AP8184086
Not Available
6
Door, black
AP8179500
Not Available
7
Tunnel, grey
AP8179123
Not Available
8
Trappe réserv. grise
AP8179120
£10,40 Unit Price incl. VAT
9
Spark plug cover
AP8179117
Not Available
10
Screw w/ flange M5x12
AP8152302
Not Available
11
Vis
AP8152351
£0,18 Unit Price incl. VAT
12
Clip M6
AP8102376
Not Available
13
Screw clip D.4,2
AP8161215
Not Available
14
Rivet en plastique;
AP8220471
£0,43 Unit Price incl. VAT
15
Rondelle pour arbres
AP8150450
£2,20 Unit Price incl. VAT
16
Vis
AP8150426
£1,27 Unit Price incl. VAT
17
Clip
AP8102375
£2,20 Unit Price incl. VAT
18
Vis
AP8152268
£1,88 Unit Price incl. VAT
19
PLATTE
AP8161182
£15,12 Unit Price incl. VAT
20
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
21
Vis bride
AP8152246
£4,03 Unit Price incl. VAT
22
Rondelle
AP8150158
£1,27 Unit Price incl. VAT

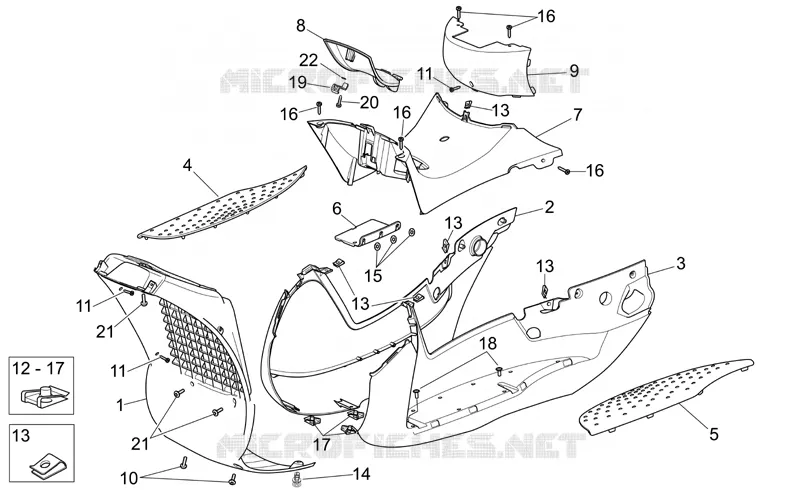

Find the detailed Central body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
