Engine displacement
250
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo Light E3
5
Parts Catalog
Saddle unit
6
Parts Diagram
Parts Catalog
Central body
by
Rear body
Saddle unit
1
2
3
4
5
6
7
8
9
10
1
Saddle, black
AP8129496
Not Available
1
Saddle, brown
AP8129498
Not Available
1
Saddle, black
AP8268909
Not Available
1
Saddle, brown
AP8129502
Not Available
2
Saddle hinge, black
AP8179124
Not Available
3
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
4
Axe de béquille
AP8221290
£9,16 Unit Price incl. VAT
5
Rondelle
AP8120592
£3,07 Unit Price incl. VAT
6
Goupille
AP8201431
£3,23 Unit Price incl. VAT
7
Caoutchouc avant selle;
AP8144089
£9,71 Unit Price incl. VAT
8
Caoutchouc avant latéral;
AP8144087
£8,65 Unit Price incl. VAT
9
Rondelle
AP8150017
£1,88 Unit Price incl. VAT
10
Rondelle élastique courbe
AP8150376
£1,76 Unit Price incl. VAT

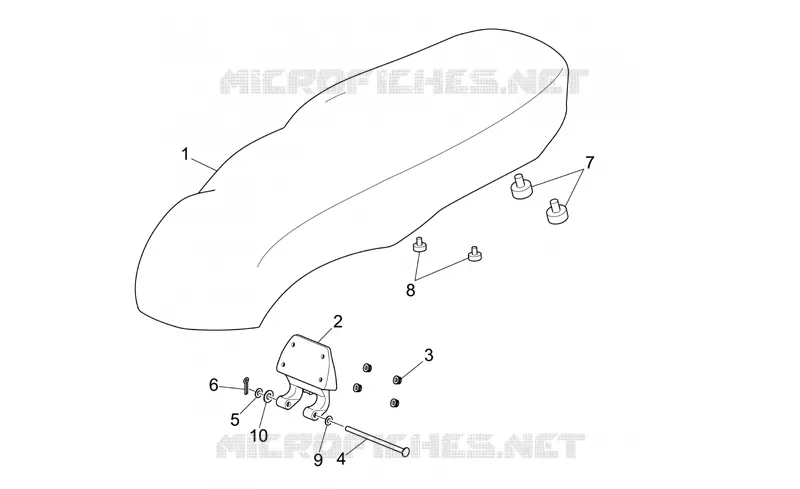

Find the detailed Saddle unit MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
