1
Engine displacement
1400
2
Model
ELDORADO
3
Year
2016
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Exhaust pipe
6
Parts Diagram
Parts Catalog
Central body
by
Saddle compartment
Exhaust pipe
1
2
3
4
5
5
5
6
6
6
6
7
8
9
9
9
9
9
9
9
9
9
10
10
11
11
11
11
11
11
12
12
13
14
15
16
17
17
18
18
19
20
20
21
21
22
22
22
23
23
23
23
24
24
24
24
25
25
26
26
26
27
27
27
27
1
RH silencer
B064126
£1 335,52 Unit Price incl. VAT
2
LH silencer
B064127
£1 335,52 Unit Price incl. VAT
3
Right silencer support bracket
887590
£108,04 Unit Price incl. VAT
4
Left silencer support bracket
887589
£108,04 Unit Price incl. VAT
5
Hex socket screw M8x12
AP8152055
£13,28 Unit Price incl. VAT
6
Washer
GU95008308
£1,26 Unit Price incl. VAT
7
Chromed left silencer heat protection
B063595
£174,67 Unit Price incl. VAT
8
Chromed right silencer heat protection
B063596
£166,36 Unit Price incl. VAT
9
Screw w/ flange M6x10
2B000215
£1,02 Unit Price incl. VAT
10
Captive nut M6
AP8152313
£2,48 Unit Price incl. VAT
11
Spring plate M6
254485
£1,64 Unit Price incl. VAT
12
D.48 clamp
B063293
£38,41 Unit Price incl. VAT
13
LH exhaust manifold
2B000145
Not Available
14
RH exhaust manifold
2B000146
Not Available
15
Chromed left manifold heat protection
B063593
£97,51 Unit Price incl. VAT
16
Chromed right manifold heat protection
B063594
£97,51 Unit Price incl. VAT
17
Spacer
876879
£10,63 Unit Price incl. VAT
18
Lamda sensor l. 325 mm
584344
£178,32 Unit Price incl. VAT
19
D.37 clamp
B063292
£37,60 Unit Price incl. VAT
20
Gasket
976376
£9,46 Unit Price incl. VAT
21
Coarse hexagonal countersunk screw
B063114
£5,08 Unit Price incl. VAT
22
Bush
887816
£13,16 Unit Price incl. VAT
23
Rubber spacer
AP8144558
£4,92 Unit Price incl. VAT
24
Bush
AP8121510
£10,88 Unit Price incl. VAT
25
Flanged nut M8
GU92660021
£1,60 Unit Price incl. VAT
26
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
27
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT

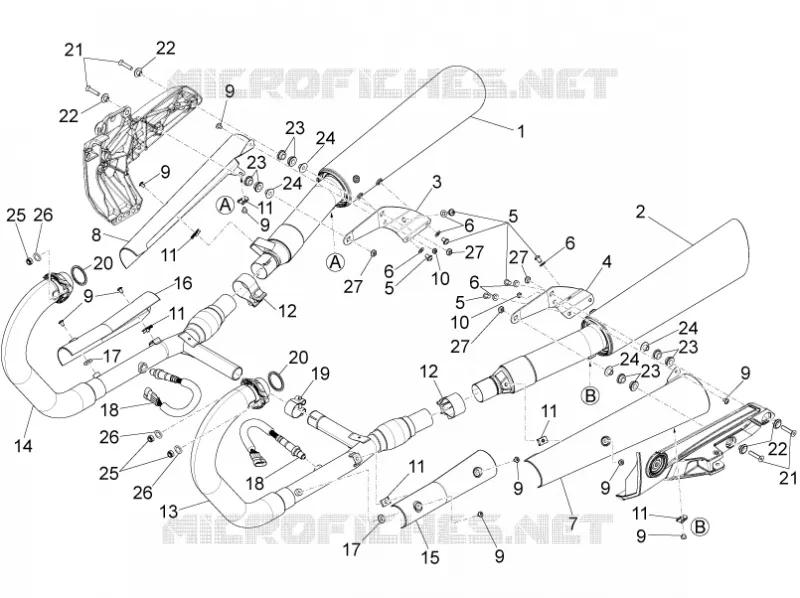

Find the detailed Exhaust pipe MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
