Engine displacement
1400
2
Model
ELDORADO
3
Year
2016
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Lubrication
by
Clutch
Swing arm
1
2
3
4
5
6
7
7
8
8
9
1
Swing arm
886959
Not Available
2
Rubber bellows
887519
£18,13 Unit Price incl. VAT
3
Hose clamp 3,6x375
GU93304390
£2,06 Unit Price incl. VAT
4
Hose clamp 4.5x430
B063759
£0,83 Unit Price incl. VAT
5
Bush
GU05547130
£25,87 Unit Price incl. VAT
6
Pin
GU05547030
£161,56 Unit Price incl. VAT
7
Roller bearing 25x47x17
GU92249224
£69,44 Unit Price incl. VAT
8
Gasket ring
GU05547930
£13,40 Unit Price incl. VAT
9
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT

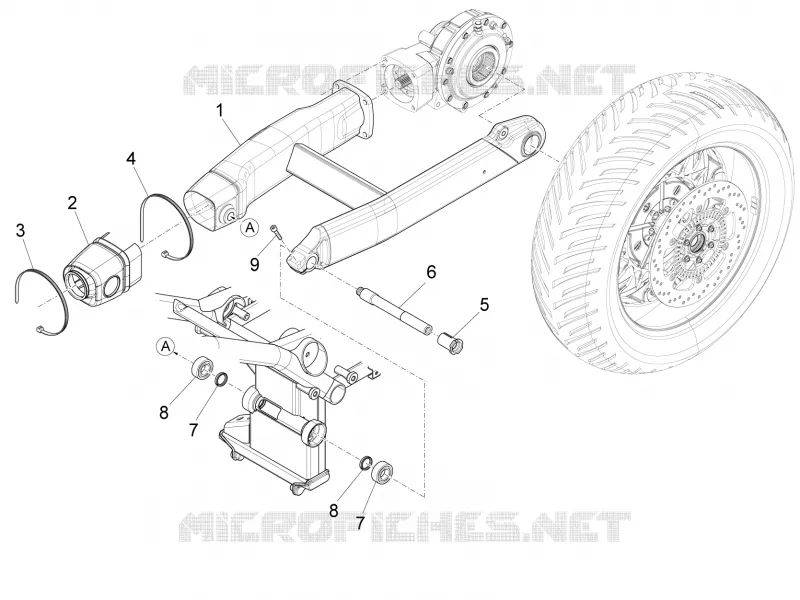

Find the detailed Swing arm MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
