Engine displacement
1400
2
Model
ELDORADO
3
Year
2016
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Transmission complete
6
Parts Diagram
Parts Catalog
Gear box / Selector / Shift cam
by
Front brake caliper
Transmission complete
1
2
3
4
5
6
1
Transmission complete
887300
Not Available
2
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
3
Complete driving shaft
886968
£922,24 Unit Price incl. VAT
4
Guard
887522
£10,28 Unit Price incl. VAT
5
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
6
Internal spacer
887757
£54,12 Unit Price incl. VAT

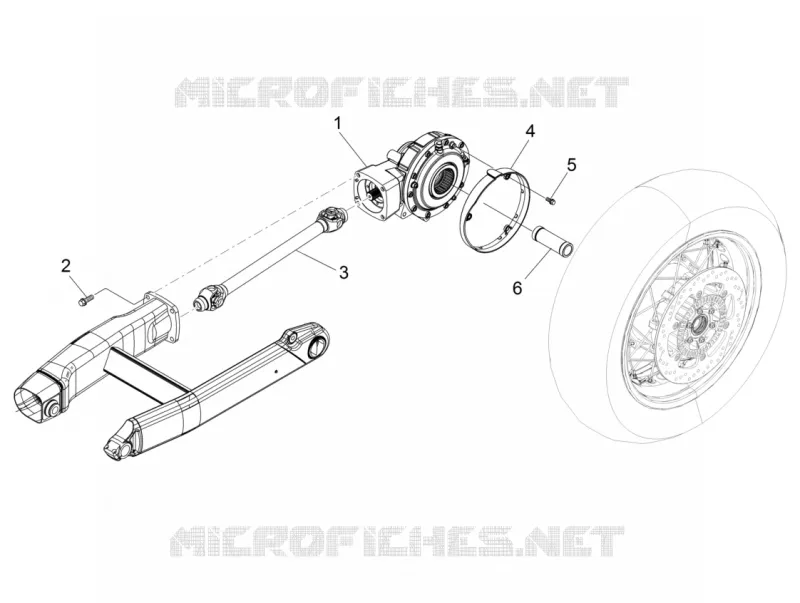

Find the detailed Transmission complete MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
