1
Engine displacement
1400
2
Model
ELDORADO
3
Year
2015
4
Trim
Eldorado E3 ABS
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Decal
by
Oil pump
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
1
Rear wheel spindle
886967
£272,62 Unit Price incl. VAT
2
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
3
Spring drive spacer
887461
£24,84 Unit Price incl. VAT
4
Flexible coupling disc
887311
£75,40 Unit Price incl. VAT
5
Flange
2B000090
£370,42 Unit Price incl. VAT
6
Screw w/ flange M10x30
B063849
£7,78 Unit Price incl. VAT
7
O-ring 56,74x3,53
887518
£2,47 Unit Price incl. VAT
8
Ball bearing 30x47x9
887517
£26,76 Unit Price incl. VAT
9
Phonic wheel
887875
Not Available
10
Brake disc
887489
£53,11 Unit Price incl. VAT
11
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
12
Rear wheel(complete)
2B001952
£1 357,84 Unit Price incl. VAT
13
Compl. rear hub
2B001235
£556,76 Unit Price incl. VAT
14
Rear wheel spacer
887530
£38,15 Unit Price incl. VAT
15
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
16
screw
GU30611460
£4,01 Unit Price incl. VAT
17
Snap ring d52
AP8125839
£5,14 Unit Price incl. VAT
18
Gasket ring 38x52x7
AP8125838
£2,71 Unit Price incl. VAT
19
Bearing 6205-2rs1 25x52x15
AP8110093
£69,65 Unit Price incl. VAT
20
Nipples L=34
978810
£13,21 Unit Price incl. VAT
21
Snap ring
978811
£2,47 Unit Price incl. VAT
22
O-ring 66,40x1,78
GU90706664
£2,47 Unit Price incl. VAT
23
O-ring OR2025
GU90706061
£2,47 Unit Price incl. VAT
24
Wheel rim 5.5x16"
2B0019554
£902,50 Unit Price incl. VAT
25
Spoke
2B001951
£4,70 Unit Price incl. VAT
26
Spoke
2B001950
£4,70 Unit Price incl. VAT
27
Spring drive rubber
B064290
£16,27 Unit Price incl. VAT
28
Rear tyre
2B001328
£548,16 Unit Price incl. VAT
29
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT

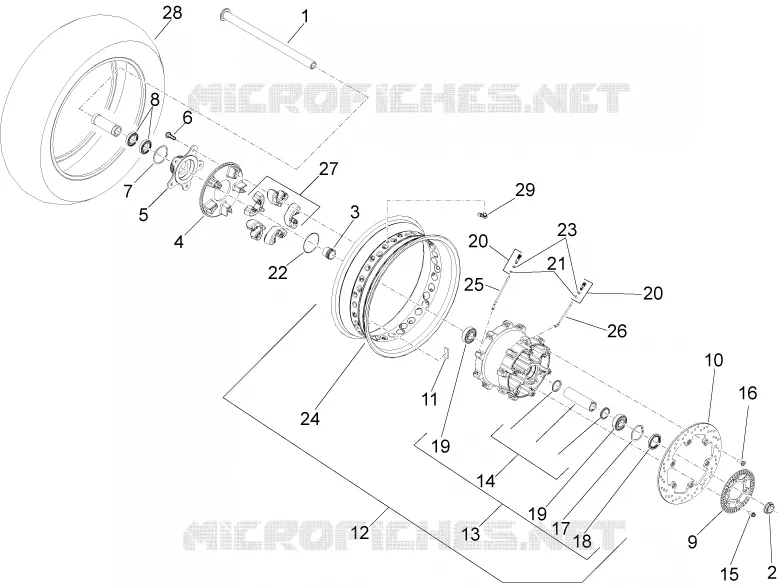

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
