Engine displacement
1400
2
Model
ELDORADO
3
Year
2015
4
Trim
Eldorado E3 ABS
5
Parts Catalog
Front lights
6
Parts Diagram
Parts Catalog
Frame
by
Rear master cylinder
Front lights
1
1
2
2
3
4
5
5
6
6
7
8
9
10
10
11
12
12
13
13
14
14
15
16
17
18
19
20
20
21
21
22
23
24
25
25
1
Spacer
887698
£31,22 Unit Price incl. VAT
2
Bush
B063174
£16,21 Unit Price incl. VAT
3
Spacer
GU91120605
£13,44 Unit Price incl. VAT
4
Articulated head M6
887921
£22,97 Unit Price incl. VAT
5
Hex socket screw M6x20
GU98612320
£1,06 Unit Price incl. VAT
6
Hex socket screw M6x55
AP8150045
£4,78 Unit Price incl. VAT
7
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
8
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
9
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
10
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
11
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
12
Washer
887697
£5,08 Unit Price incl. VAT
13
Washer 6,4x12,5*
AP8150178
£1,27 Unit Price incl. VAT
14
Gasket ring
006410
Not Available
15
Headlight
887453
£677,92 Unit Price incl. VAT
16
Lamp H7 12V-55W
294353
£34,40 Unit Price incl. VAT
17
Lamp H3 12V-55W
294278
£8,32 Unit Price incl. VAT
18
RH headlight supp.
2B000151
£111,35 Unit Price incl. VAT
19
LH headlight supp.
2B000152
£111,35 Unit Price incl. VAT
20
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
21
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
22
Front left turn indicator
B063029
£68,16 Unit Price incl. VAT
23
Front right turn indicator
B063028
£68,16 Unit Price incl. VAT
24
Cable-guide
AP8221310
£2,96 Unit Price incl. VAT
25
Turn indicator lens
2D000007
£8,63 Unit Price incl. VAT

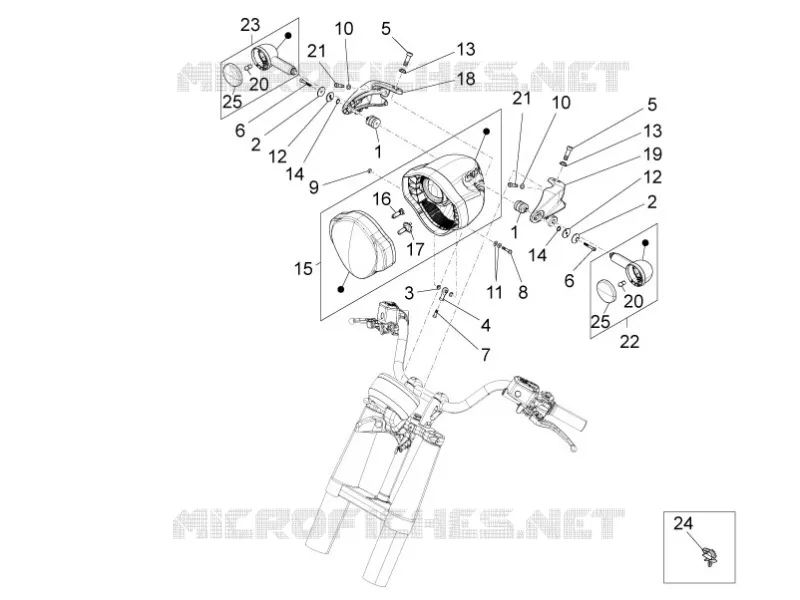

Find the detailed Front lights MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
