1
Engine displacement
1400
2
Model
ELDORADO
3
Year
2015
4
Trim
Eldorado E3 ABS
5
Parts Catalog
Front electrical system
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
ABS Brake system
Front electrical system
1
2
2
2
2
3
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
37
38
39
40
1
Box
887955
£13,82 Unit Price incl. VAT
2
HT coil
641901
£118,08 Unit Price incl. VAT
3
Stud bolt
B063162
£14,06 Unit Price incl. VAT
4
Stud bolt
B063844
£15,76 Unit Price incl. VAT
5
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
6
Coil holder
B063508
£16,34 Unit Price incl. VAT
7
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
8
Hex socket screw M5x15
976614
£15,76 Unit Price incl. VAT
9
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
10
Spring
641652
£2,59 Unit Price incl. VAT
11
Bush
AP8121032
£3,88 Unit Price incl. VAT
12
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
13
Screw w/ flange M5x12
AP8152302
Not Available
14
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
15
Spring plate M5
248419
£2,00 Unit Price incl. VAT
16
Coil holder
B063742
£13,30 Unit Price incl. VAT
17
Air temp. Sensor
AP8124936
£82,98 Unit Price incl. VAT
18
Support plate
B063015
£21,31 Unit Price incl. VAT
19
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
20
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
21
Accelerator position sensor
B044414
£928,16 Unit Price incl. VAT
22
Complete H.V. cable
887835
Not Available
23
Complete H.V. cable
887836
Not Available
24
Complete H.V. cable
B063426
Not Available
25
Screw w/ flange M5x12
AP8152302
Not Available
26
Spring plate M5
248419
£2,00 Unit Price incl. VAT
27
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
28
Horn
890979
£71,26 Unit Price incl. VAT
29
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
30
Spring plate M6
254485
£1,64 Unit Price incl. VAT
31
Instrument support
890760
£16,21 Unit Price incl. VAT
32
Temp. Sensor
887421
£147,26 Unit Price incl. VAT
33
Encoder sensor
832029
Not Available
34
Plate
B063592
£7,50 Unit Price incl. VAT
35
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
36
O-ring
GU90706141
Not Available
37
Rubber spacer
B063131
£12,96 Unit Price incl. VAT
38
Spark plug NGK LMAR8F-9
887016
£23,48 Unit Price incl. VAT
39
Clamp with arrow head and sucker cup
B064017
£2,48 Unit Price incl. VAT
40
Kit interfaccia
2R000309
£430,14 Unit Price incl. VAT

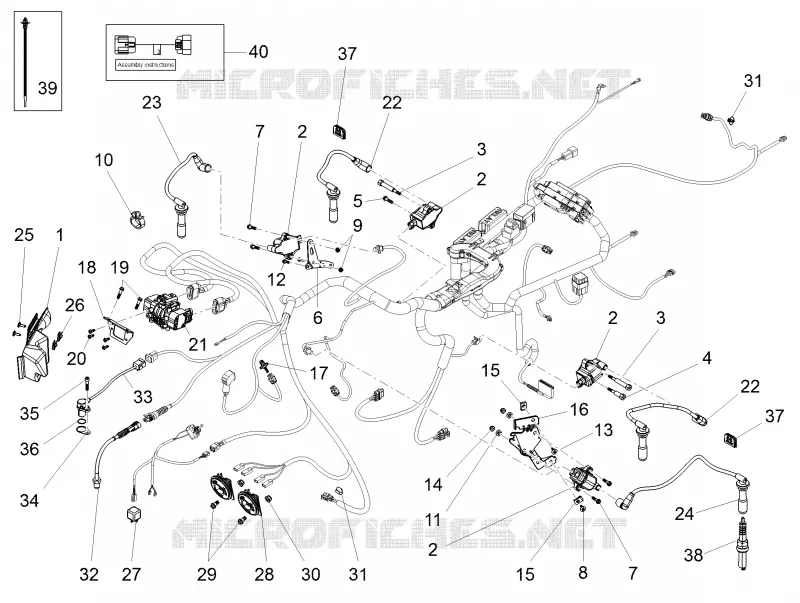

Find the detailed Front electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
