1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2004
4
Trim
California Aluminium - Titanium PI
5
Parts Catalog
Single-plate clutch 1st series
6
Parts Diagram
Parts Catalog
Front mudguard
by
Timing system

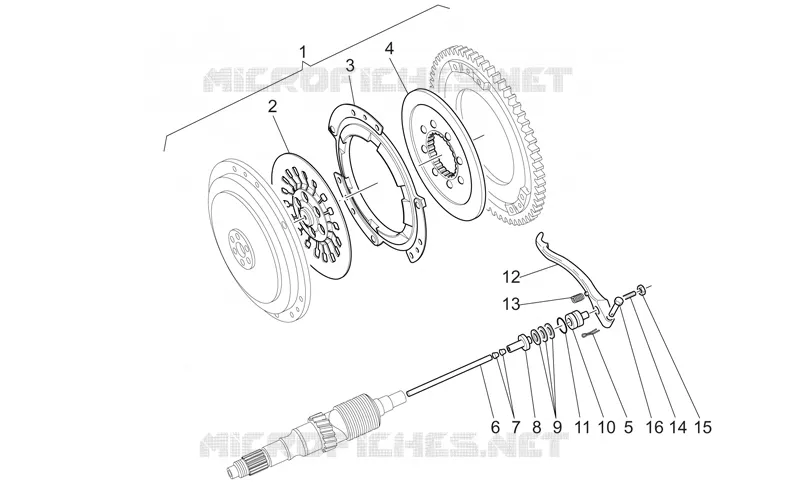

Single-plate clutch 1st series
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Clutch cpl.
GU03080155
Not Available
2
Belleville spring
GU03084055
£108,44 Unit Price incl. VAT
3
Intermediate plate
GU03081955
Not Available
4
Clutch disc
GU03084455
Not Available
5
Split pin
GU95500222
£1,26 Unit Price incl. VAT
6
Rod
GU14085700
£65,41 Unit Price incl. VAT
7
Bush
GU14085900
£2,48 Unit Price incl. VAT
8
Inner body
GU14086000
£82,28 Unit Price incl. VAT
9
Thrust bearing
GU12087001
Not Available
10
Outer body
GU14086100
£71,74 Unit Price incl. VAT
11
O-ring 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
12
Clutch relese shaft
GU14090202
£101,22 Unit Price incl. VAT
13
Lever return spring
GU94321105
£1,94 Unit Price incl. VAT
14
Adjuster screw
GU14090400
£42,74 Unit Price incl. VAT
15
Nut
GU92606508
£1,26 Unit Price incl. VAT
16
Pin 7x39
GU95780271
Not Available

Find the detailed Single-plate clutch 1st series MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
