Heads for MOTO GUZZI LAVERDA SCARABEO California Aluminium - Titanium PI from 2004

Free shipping for all orders to United Kingdom over £150! See conditions.

Heads

1

RH head assy w/h valve grey

GU03022130

£196,13 Unit Price incl. VAT

2

LH head assy without valve grey

GU30022260

£204,20 Unit Price incl. VAT

3

Exhaust valve guide

GU13036801

£59,48 Unit Price incl. VAT

4

Intake valve guide

GU14036860

£46,54 Unit Price incl. VAT

5

Exhaust valve

GU03036100

Not Available

6

Intake valve

GU03036000

£55,46 Unit Price incl. VAT

7

Snap ring

GU90353016

£1,02 Unit Price incl. VAT

8

Washer 14,2x31x1

GU13037200

£2,75 Unit Price incl. VAT

9

Washer 14,2x31x0,3

GU14037300

£2,26 Unit Price incl. VAT

10

Washer plate

GU01038730

£3,98 Unit Price incl. VAT

11

Outer spring

GU37037405

£17,94 Unit Price incl. VAT

12

Inner spring

GU37037605

£17,58 Unit Price incl. VAT

13

Upper cup

GU37038005

£45,84 Unit Price incl. VAT

14

Valve half-cone

GU12038100

£12,37 Unit Price incl. VAT

15

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

16

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

17

Column nut

GU13021900

£15,36 Unit Price incl. VAT

18

Washer 10,5X18X0,8

GU95129180

£1,02 Unit Price incl. VAT

19

Stud bolt

GU96508040

£12,31 Unit Price incl. VAT

20

Gasket

GU30022060

£23,64 Unit Price incl. VAT

21

O-ring 9x2

GU90706094

£1,87 Unit Price incl. VAT

22

Rocker arm support

GU14034865

£54,23 Unit Price incl. VAT

23

Nut M10X1,5

GU92603010

£1,54 Unit Price incl. VAT

24

Washer 10,5X21X1

GU14018400

£1,26 Unit Price incl. VAT

25

RH rocker arm assy

GU03030230

Not Available

26

LH rocker arm assy

GU03030430

Not Available

27

Bushing 15x18x43

GU91111511

£53,51 Unit Price incl. VAT

28

Lower cup 14,2x32x5

GU01037030

£23,16 Unit Price incl. VAT

29

Hex socket screw M6x25

GU98692325

£5,23 Unit Price incl. VAT

30

Spring

GU94322215

£10,33 Unit Price incl. VAT

31

Washer 15,2x26x1

GU90118152

£12,17 Unit Price incl. VAT

32

Washer 15,2x26x0,5

GU10032700

£1,25 Unit Price incl. VAT

33

Rocker shaft

GU12031800

Not Available

34

Hex screw

GU98084316

£1,20 Unit Price incl. VAT

35

Washer 6,5x11x2

GU95120065

£1,02 Unit Price incl. VAT

36

RH/LH head cover gold

GU03023565

Not Available

36

RH/LH head cover grey

GU01023560

Not Available

37

Spark plug guard grey

GU03941065

£23,94 Unit Price incl. VAT

38

Cover gasket

GU14023760

£9,22 Unit Price incl. VAT

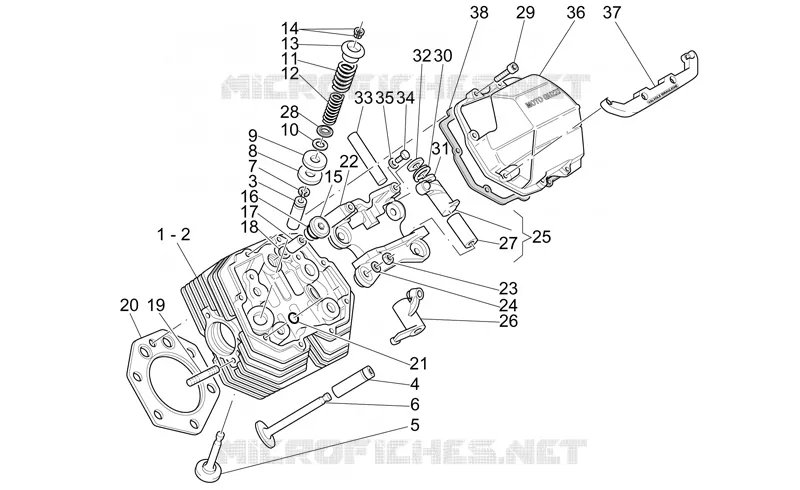

Find the detailed Heads MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
