Fuel tank for MOTO GUZZI LAVERDA SCARABEO California Aluminium - Titanium PI from 2004

Free shipping for all orders to United Kingdom over £150! See conditions.

Fuel tank

1

Fuel tank blank

GU03100270

£276,89 Unit Price incl. VAT

1

Fuel tank titanium/grey

GU89000512

Not Available

1

Fuel tank steel/grey

GU89000511

£4 006,91 Unit Price incl. VAT

2

RH stic."Moto Guzzi" grey/red

GU03917843

£36,50 Unit Price incl. VAT

2

Moto Guzzi RH decal

GU03917854

Not Available

3

LH stic."Moto Guzzi" grey/red

GU03917943

£28,99 Unit Price incl. VAT

3

Moto Guzzi LH decal

GU03917954

£35,10 Unit Price incl. VAT

4

Gasket

GU03106400

Not Available

5

Tank cap

GU03103970

Not Available

6

Flange

GU03101900

£57,32 Unit Price incl. VAT

7

Gasket

GU03102400

£11,75 Unit Price incl. VAT

8

Plug ring nut

GU03102200

£22,43 Unit Price incl. VAT

9

Gasket

GU03101600

£38,39 Unit Price incl. VAT

10

Reduction 38 mm

GU03101720

£7,43 Unit Price incl. VAT

11

screw

GU03103200

£7,98 Unit Price incl. VAT

12

Hex socket screw M8x30

GU98350430

£2,35 Unit Price incl. VAT

13

Washer

GU95100239

£2,04 Unit Price incl. VAT

14

Spacer

GU31103565

£7,36 Unit Price incl. VAT

15

Rubber spacer

GU91551131

£2,16 Unit Price incl. VAT

16

Captive nut

GU92660801

£2,04 Unit Price incl. VAT

17

Decal "Attention"

GU30944300

£13,50 Unit Price incl. VAT

18

Sticker LH gold

GU03921566

Not Available

18

Sticker LH silver

GU03921568

Not Available

19

Lock kit

GU03736870

Not Available

20

Non indented key blank

GU30735500

£10,22 Unit Price incl. VAT

21

Decal "Italian Story"

GU03917570

£32,58 Unit Price incl. VAT

22

RH front protect black

GU03472460

Not Available

23

LH front protect black

GU03472960

£11,53 Unit Price incl. VAT

24

Hex socket screw

GU98370619

£1,58 Unit Price incl. VAT

25

Washer

GU03462801

£1,87 Unit Price incl. VAT

26

Spacer 6,25x8x5

GU91180600

£7,98 Unit Price incl. VAT

27

Rubber spacer 8x15

GU91551081

£1,70 Unit Price incl. VAT

28

Gasket

GU00823931055

£10,76 Unit Price incl. VAT

29

Ring

GU03103500

£13,40 Unit Price incl. VAT

30

Sticker RH gold

GU03921565

Not Available

30

Sticker RH silver

GU03921567

Not Available

31

Decal "Unleaded Fuelonly"

GU03995730

£8,08 Unit Price incl. VAT

32

Tank cap ring and spring kit

GU03104370

£20,60 Unit Price incl. VAT

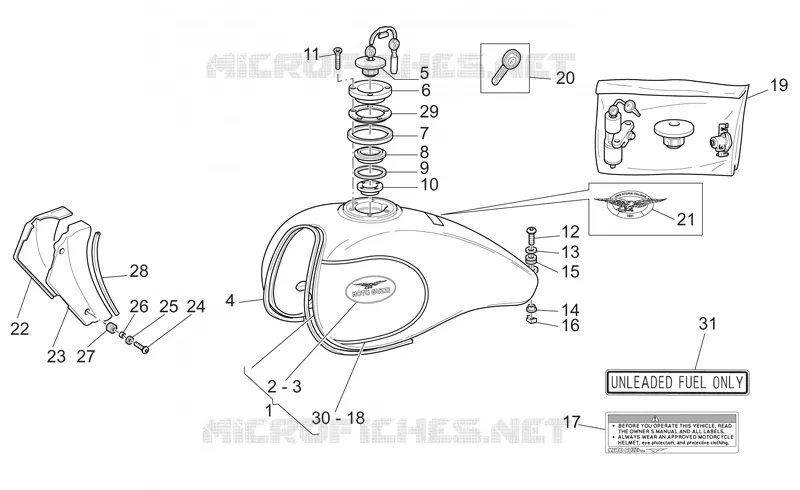

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
