Crankcases I for MOTO GUZZI LAVERDA SCARABEO California Touring ABS from 2012

Free shipping for all orders to United Kingdom over £150! See conditions.

Crankcases I

1

Crankcase, grey

886908

Not Available

2

Pin

411209

£4,56 Unit Price incl. VAT

3

Pin

GU95512081

£4,34 Unit Price incl. VAT

4

Pin

560110

£10,10 Unit Price incl. VAT

5

Stud bolt M8x66

GU96508066

£50,56 Unit Price incl. VAT

6

Coupling bush

GU12018900

£10,75 Unit Price incl. VAT

7

Stud bolt M8x75

GU96508075

£13,44 Unit Price incl. VAT

8

Washer 8,4X13X0,8

GU14615901

£2,48 Unit Price incl. VAT

9

Flanged nut M8

GU92660021

£1,60 Unit Price incl. VAT

10

Oil plug

GU12022600

£36,13 Unit Price incl. VAT

11

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

12

Complete flange

976703

£413,83 Unit Price incl. VAT

13

Hex screw M8x25

GU98084425

£1,02 Unit Price incl. VAT

14

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

15

Gasket ring

GU90405367

£35,53 Unit Price incl. VAT

16

Seal ring (o-ring)

1A008362

Not Available

17

Sump gasket

B063861

£15,65 Unit Price incl. VAT

18

Motor oil cup

B063271

£215,98 Unit Price incl. VAT

19

Oil dipstick

B063898

£13,21 Unit Price incl. VAT

20

Gasket

B063850

£11,92 Unit Price incl. VAT

21

Screw w/ flange

AP8152284

£1,88 Unit Price incl. VAT

22

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

23

Gasket 10x18x1,5

GU01528930

£4,21 Unit Price incl. VAT

24

Hex socket screw M6x20

GU98682330

£1,26 Unit Price incl. VAT

25

Hex socket screw M6x35

AP8150285

£1,94 Unit Price incl. VAT

26

Joint

B063846

£15,89 Unit Price incl. VAT

27

Gasket

GU01154230

£2,34 Unit Price incl. VAT

28

Thermometric switch

B063461

£65,38 Unit Price incl. VAT

29

O-ring 17,86X2,62

GU90706178

£0,98 Unit Price incl. VAT

30

Gasket 20,1x28x2

GU95100709

£5,29 Unit Price incl. VAT

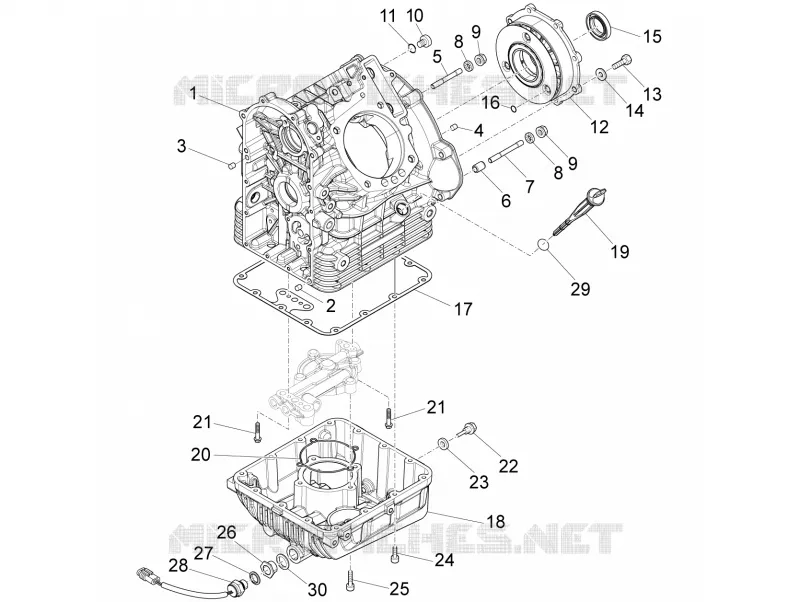

Find the detailed Crankcases I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
