1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2012
4
Trim
California Touring ABS
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Engine-Completing part-Lever
by
Gear lever
Crankcases I
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
14
14
14
1
Timing system cover
82999R
£380,40 Unit Price incl. VAT
2
Gasket ring 22x35x7viton
GU90412237
£30,26 Unit Price incl. VAT
3
Cover
GU05002130
£16,09 Unit Price incl. VAT
4
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
5
Cover
976554
£30,67 Unit Price incl. VAT
6
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
7
Bushing 6,4x8,4x10,5
GU91120607
£5,29 Unit Price incl. VAT
8
O-ring 34,65x1,78viton
GU90706347
Not Available
9
Cover gasket
976478
£26,94 Unit Price incl. VAT
10
Hex socket screw M8x55
GU98620455
£1,58 Unit Price incl. VAT
11
screw
GU98620330
£0,49 Unit Price incl. VAT
12
Alternator cover grey
GU05001630
£32,03 Unit Price incl. VAT
13
Bushing 6,8x8,8x5,8
GU91120606
£5,24 Unit Price incl. VAT
14
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT

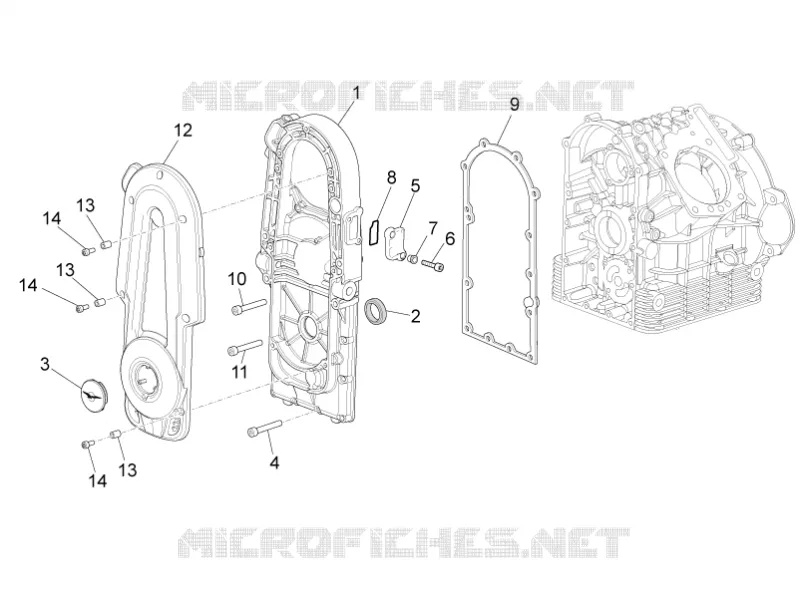

Find the detailed Crankcases I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
