1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2012
4
Trim
California Touring ABS
5
Parts Catalog
Rear transmission / Components
6
Parts Diagram
Parts Catalog
Front electrical system
by
RH cylinder timing system I
Rear transmission / Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Gasket ring OR3281 VITON FP75/80
B064032
£10,54 Unit Price incl. VAT
2
Gasket ring 25X40X7
B064029
£48,16 Unit Price incl. VAT
3
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
4
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
5
SEAL RING
B064031
£57,76 Unit Price incl. VAT
6
Ball bearing 45X75X16
B064037
£66,90 Unit Price incl. VAT
7
SEAL RING
B064030
£32,80 Unit Price incl. VAT
8
Ball bearing 85x120x18
GU92208518
£565,99 Unit Price incl. VAT
9
Protection
B064041
£96,82 Unit Price incl. VAT
10
Gasket ring 85x110x8BASL
GU90408511
£98,57 Unit Price incl. VAT
11
Gasket ring OR 3675
B064119
Not Available
12
Hex socket screw M8x16
AP8150211
Not Available
13
Hex socket screw M8x20
AP8150169
£1,66 Unit Price incl. VAT
14
Washer
GU90718120
£2,35 Unit Price incl. VAT
15
Oil plug M12x1,5
GU05351230
£13,44 Unit Price incl. VAT
16
Breather plug
B064044
£55,78 Unit Price incl. VAT

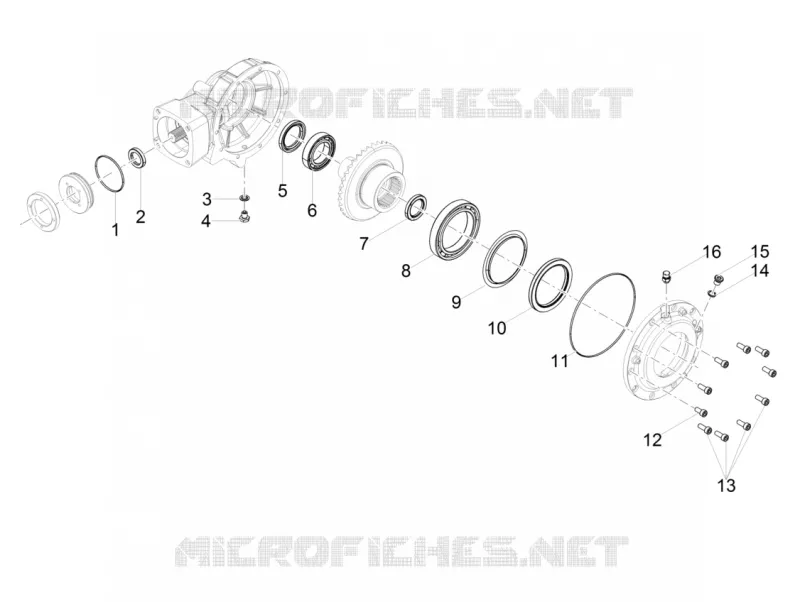

Find the detailed Rear transmission / Components MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
