1
Engine displacement
125
2
Model
SCARABEO
3
Year
2011
4
Trim
Scarabeo i.e. light
5
Parts Catalog
Central body II
6
Parts Diagram
Parts Catalog
Dashboard
by
Engine
Central body II
1
2
3
3
4
5
6
7
8
9
10
10
11
12
13
1
Floor panel, black
JC47331X92000
£132,95 Unit Price incl. VAT
2
Battery cover
JC47341X92000
Not Available
3
Hex socket screw
JC02142X06163
£0,48 Unit Price incl. VAT
4
RH mat, black
JC47131X92000
£39,12 Unit Price incl. VAT
5
LH mat, black
JC47231X92000
Not Available
6
Spark plug cover grey
JC473519200007C
Not Available
6
Spark plug cover blank
JC47351X92000
£115,06 Unit Price incl. VAT
6
Spark plug cover
JC473519200007D
£151,70 Unit Price incl. VAT
6
Spark plug cover red
JC473519200008G
Not Available
6
Spark plug cover blue
JC473519200006B
Not Available
6
Spark plug cover black
JC473519200007B
£144,47 Unit Price incl. VAT
6
Spark plug cover
JC473519200008F
Not Available
7
Underpanel
JC47361X92000
£136,78 Unit Price incl. VAT
8
Inox self tapping screw 2x16
JCE41104216JN00
£1,08 Unit Price incl. VAT
9
Central stand cover
JC47461X92000
£7,68 Unit Price incl. VAT
10
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
11
Screw w/ flange M5x12
AP8152302
Not Available
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Clip
AP8202449
£1,87 Unit Price incl. VAT

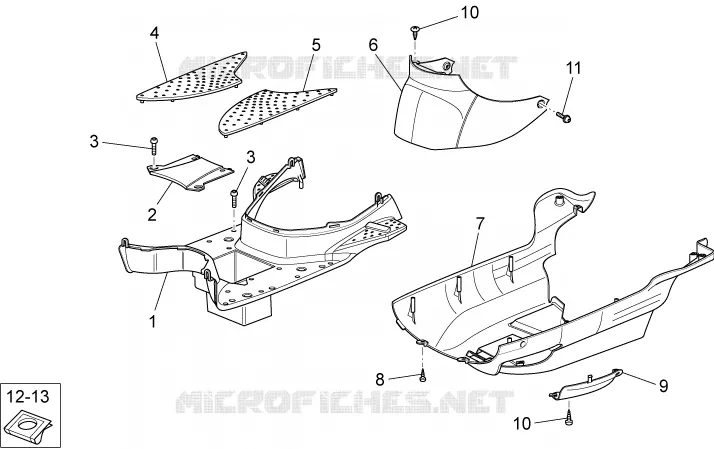

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
