Engine displacement
125
2
Model
SCARABEO
3
Year
2011
4
Trim
Scarabeo i.e. light
5
Parts Catalog
Oil pump
6

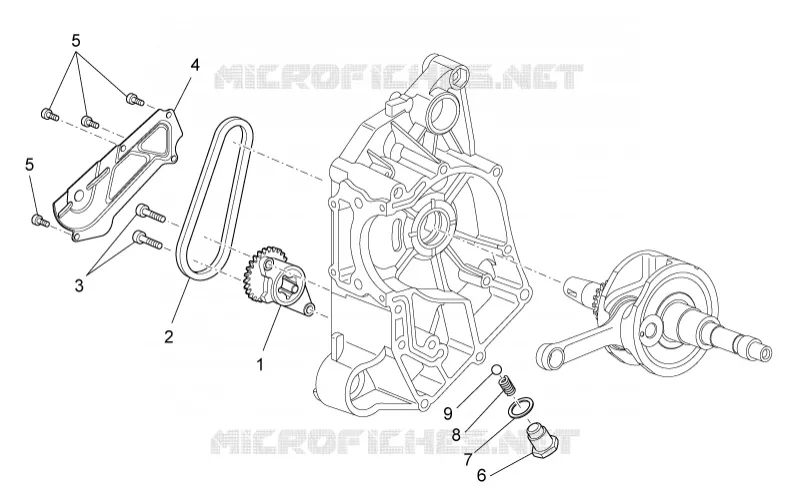

Parts Diagram
Parts Catalog
Lock hardware kit
by
Camshaft
Oil pump
1
2
3
4
5
5
6
7
8
9
1
Oil pump assy.
AP1IBA000843
£84,18 Unit Price incl. VAT
2
Oil pump chain
AP2ICA000319
Not Available
3
Hex socket screw
AP4ADN000286
Not Available
4
Oil bulhead
AP3IBA000317
£23,86 Unit Price incl. VAT
5
Hex socket screw
AP4ADN000287
Not Available
6
Cover
AP3IDA000735
£12,70 Unit Price incl. VAT
7
Gasket 18X24X1
AP2DEN000135
£0,70 Unit Price incl. VAT
8
Spring
AP3IDA000525
£1,16 Unit Price incl. VAT
9
Ball
AP3IDA000524
£2,33 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
