Engine displacement
125
2
Model
SCARABEO
3
Year
2011
4
Trim
Scarabeo i.e. light
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Undersaddle
by
Electrical system I
Drive shaft
1
2
3
3
1
Crankshaft cpl.
856615
£499,27 Unit Price incl. VAT
1
Crankshaft cpl.
856612
Not Available
2
Transmission key
AP2FAN000107
£1,91 Unit Price incl. VAT
3
Washer
AP3FCA000291
£2,20 Unit Price incl. VAT

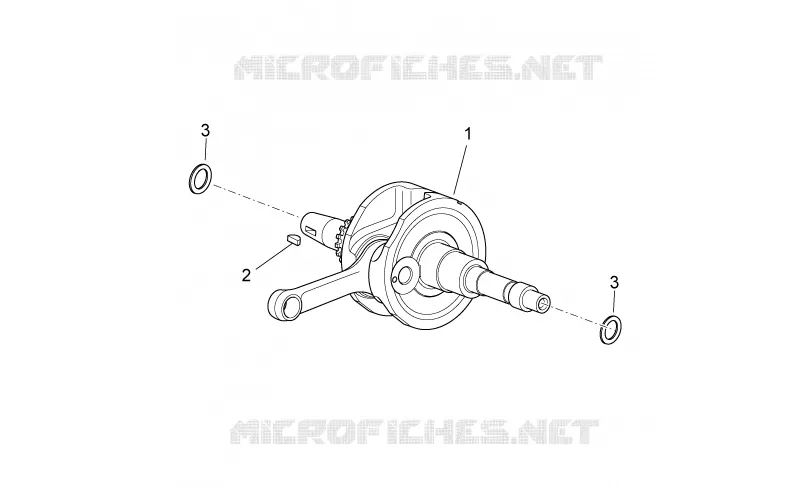

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
