1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Corazzieri
5
Parts Catalog
Windshield
6
Parts Diagram
Parts Catalog
Gear box - Gear assembly
by
RH cylinder timing system I

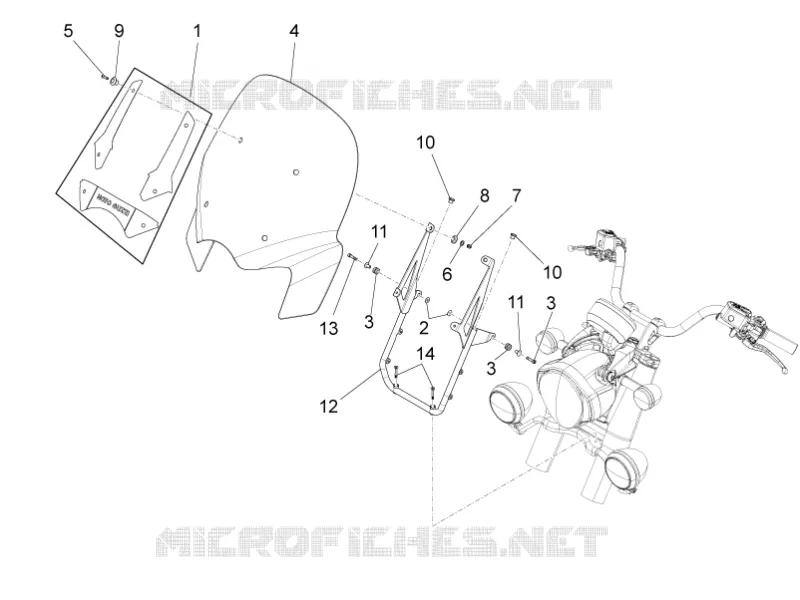

Windshield
1
2
3
3
3
4
5
6
7
8
9
10
10
11
11
12
13
14
1
Windscreen bracket kit
2B003542
£200,38 Unit Price incl. VAT
2
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
3
Rubber spacer 8x18
GU91551167
£1,43 Unit Price incl. VAT
4
Windscreen
B063721
£736,12 Unit Price incl. VAT
5
Hex socket screw M6x20
AP8152060
Not Available
6
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
7
Cap nut M6x1
GU92787006
£7,98 Unit Price incl. VAT
8
Rubber spacer 10x25
GU32577910
£3,10 Unit Price incl. VAT
9
Bushing
GU03578432
£15,47 Unit Price incl. VAT
10
Cover
B063831
£2,48 Unit Price incl. VAT
11
Bush 18x6,5x11,5
B063830
£15,76 Unit Price incl. VAT
12
Front frame
B063984
£648,71 Unit Price incl. VAT
13
Hex socket screw M6x30
AP8152479
£1,88 Unit Price incl. VAT
14
Screw M6x40
B064320
£1,12 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
