1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Corazzieri
5
Parts Catalog

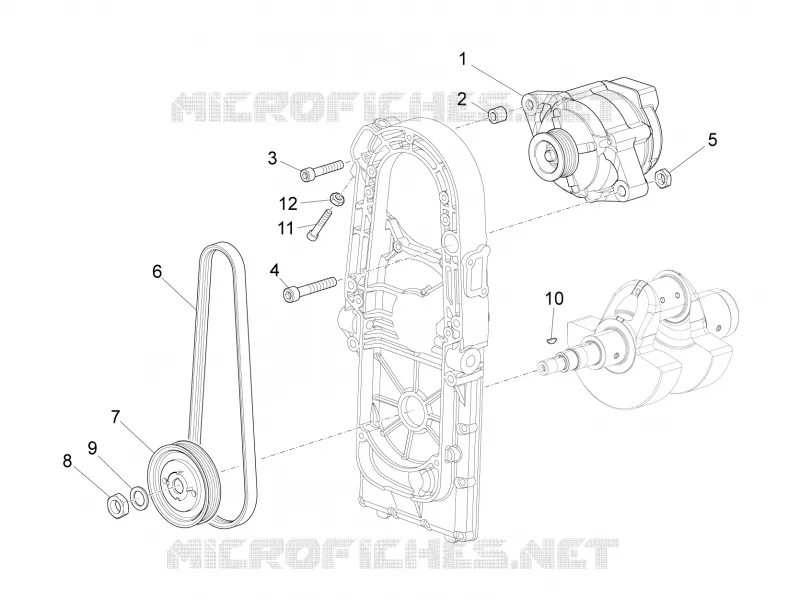

Cdi magneto assy / Ignition unit
6
Parts Diagram
Parts Catalog
Crankcases I
by
Timing system
Cdi magneto assy / Ignition unit
1
2
3
4
4
5
6
7
8
9
10
11
12
1
Generator
886255
£488,10 Unit Price incl. VAT
2
Spacer 8,5x17x13
GU91180823
£14,90 Unit Price incl. VAT
3
Hex socket screw M8x45
GU98620445
£1,87 Unit Price incl. VAT
4
Hex socket screw M10x60
GU98620560
£3,65 Unit Price incl. VAT
5
Nut M10X1,5
GU92660012
£13,40 Unit Price incl. VAT
6
Belt
GU05702530
£35,95 Unit Price incl. VAT
7
Generator lever pulley
GU05701430
£47,64 Unit Price incl. VAT
8
Nut M16
GU92606516
£10,73 Unit Price incl. VAT
9
Washer 16,25x24,5x5
GU30714201
£9,26 Unit Price incl. VAT
10
Flywheel magneto key
GU4FAN000030
£5,23 Unit Price incl. VAT
11
Hex socket screw M8x50
GU98230850
£2,47 Unit Price incl. VAT
12
Nut M8x1,25
GU92605408
£2,47 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
