Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Steering
by
Cylinder - Piston

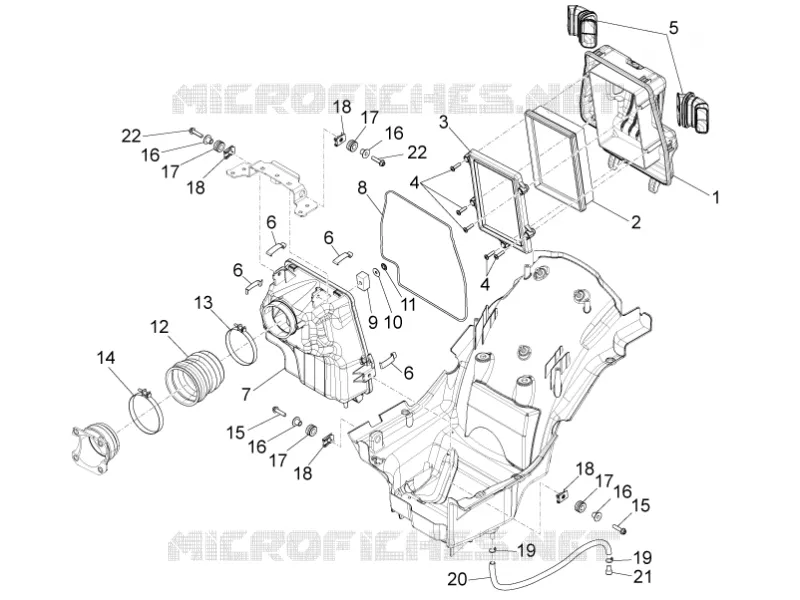

Air box
1
2
3
4
4
5
6
6
6
6
7
8
9
10
10
11
12
13
14
15
15
16
16
16
16
17
17
17
17
18
18
18
18
19
20
21
22
22
1
Filter box upper shell
886859
£22,72 Unit Price incl. VAT
2
Air filter
AP8104329
£14,45 Unit Price incl. VAT
3
Filter support
886867
£15,91 Unit Price incl. VAT
4
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
5
Intake hose
886861
£11,74 Unit Price incl. VAT
6
Spring
622236
£10,20 Unit Price incl. VAT
7
Filter box lower shell
886860
£22,55 Unit Price incl. VAT
8
Gasket D3
AP8120615
£2,59 Unit Price incl. VAT
9
Blow-by filter
B063477
£7,27 Unit Price incl. VAT
10
Washer
567603
£0,24 Unit Price incl. VAT
11
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
12
Filter box sleeve
886871
£15,49 Unit Price incl. VAT
13
Hose clamp D76
B063957
£10,44 Unit Price incl. VAT
14
Clamp 70x90x9
GU93306070
£15,71 Unit Price incl. VAT
15
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
16
T bush
AP8221023
£1,64 Unit Price incl. VAT
17
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
18
Spring plate M6
254485
£1,64 Unit Price incl. VAT
19
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
20
Fuel pipe 6x10
AP8144038
£38,70 Unit Price incl. VAT
21
Plug
AP8120876
£8,23 Unit Price incl. VAT
22
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
