Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
Toothed pulley
by
Acc. - Top/cases, side cases
Water cooler
1
2
3
4
4
5
6
7
8
9
10
11
11
12
12
12
12
1
Water cooler
AP8202209
Not Available
2
Water cooler support
AP8134485
Not Available
3
Ecrou
AP8150026
£0,96 Unit Price incl. VAT
4
Vis bride
AP8152277
£1,88 Unit Price incl. VAT
5
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
6
Fan, cpl.
AP8124855
Not Available
7
Clip M6
AP8102376
Not Available
8
Thermointerrupteur
AP8127441
£43,22 Unit Price incl. VAT
9
Rondelle en aluminium
AP8121837
£1,86 Unit Price incl. VAT
10
Caoutchouc
AP8120405
£5,52 Unit Price incl. VAT
11
Silentbloc
AP8120275
£2,83 Unit Price incl. VAT
12
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT

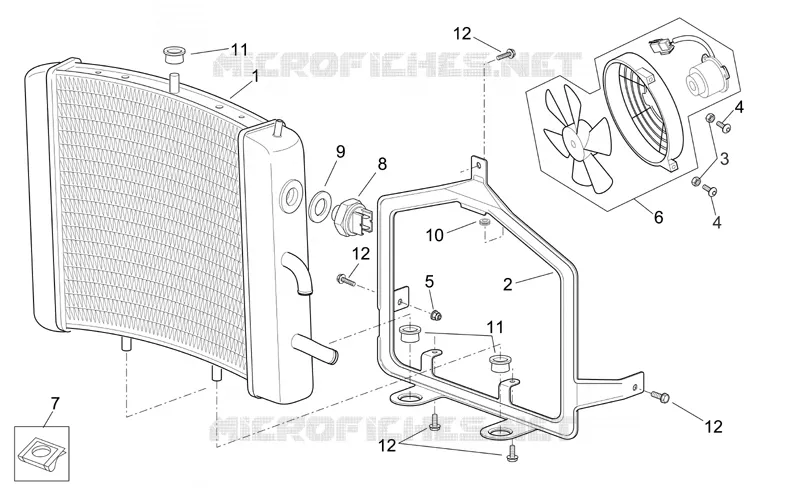

Find the detailed Water cooler MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
