Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Saddle unit
6
Parts Diagram
Parts Catalog
Rear caliper
by
Electrical system II
Saddle unit
1
2
4
5
6
7
7
7
7
8
9
10
10
11
11
1
Pillar hinge, black
AP8149325
Not Available
2
Saddle complete, blue
AP8129478
Not Available
2
Saddle complete, black
AP8129499
Not Available
4
Saddle spin
AP8121333
Not Available
5
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
6
Split pin
AP8201643
£3,43 Unit Price incl. VAT
7
Rubber spacer
AP8220349
£3,10 Unit Price incl. VAT
8
T bush
AP8221023
£1,64 Unit Price incl. VAT
9
Shear rivet M6x17
AP8152140
£2,39 Unit Price incl. VAT
10
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
11
T bush *
AP8121075
£1,96 Unit Price incl. VAT

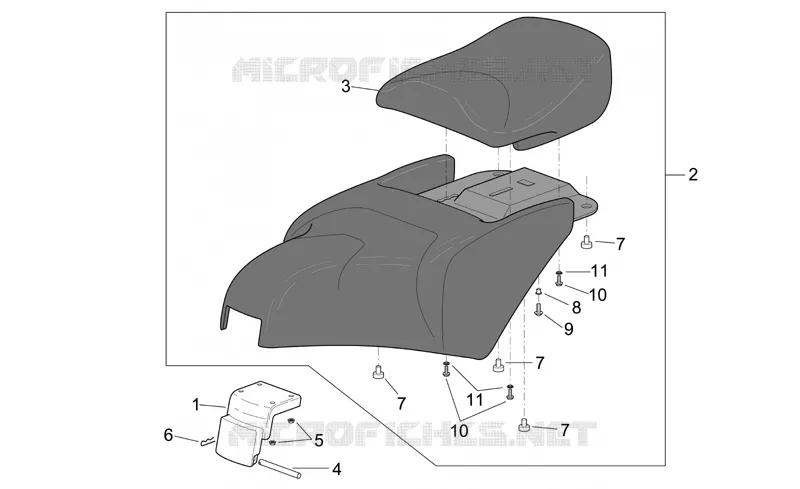

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
