Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Carburettor II
6

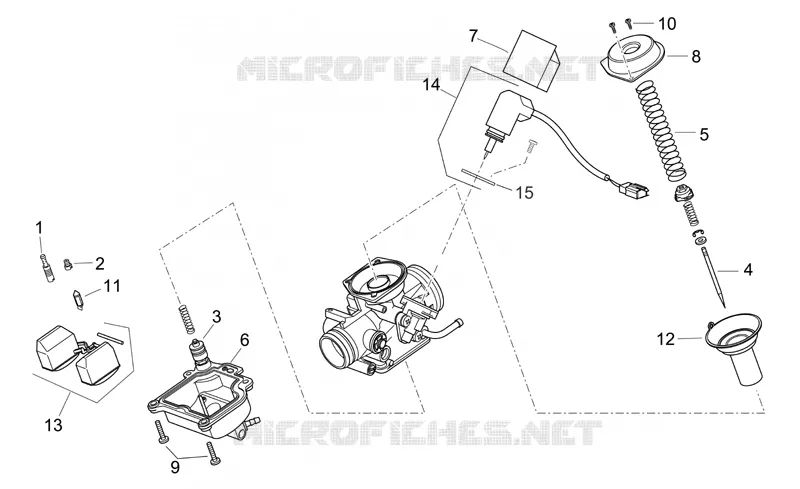

Parts Diagram
Parts Catalog
Frame
by
Front body - Front cover
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Idle jet 35
AP8580266
Not Available
1
Idle jet 38
AP8575044
Not Available
2
Main jet 100
AP8575045
Not Available
2
Main jet 105
AP8580267
Not Available
3
Acceleration pump kit
CM149504
Not Available
4
Conical pin
AP8580268
Not Available
4
Conical pin
AP8575046
Not Available
5
Valve gas return spring
AP8580269
Not Available
5
Valve gas return spring
AP8575047
Not Available
6
Complete reservoir
CM140404
Not Available
6
Float chamber cpl.
AP8575048
Not Available
7
Starter cover
AP8551065
Not Available
8
Cover
AP8577079
Not Available
9
screw
AP8580016
Not Available
10
screw
AP8580017
Not Available
11
Fuel closing needle
AP8551112
Not Available
12
Diaphragm
AP8575049
Not Available
13
Float kit
AP8575050
Not Available
14
Automatic starter cpl.
AP8580270
Not Available
14
Automatic starter cpl.
AP8575051
Not Available
15
Plate
AP8551064
Not Available
