Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Clutch
6

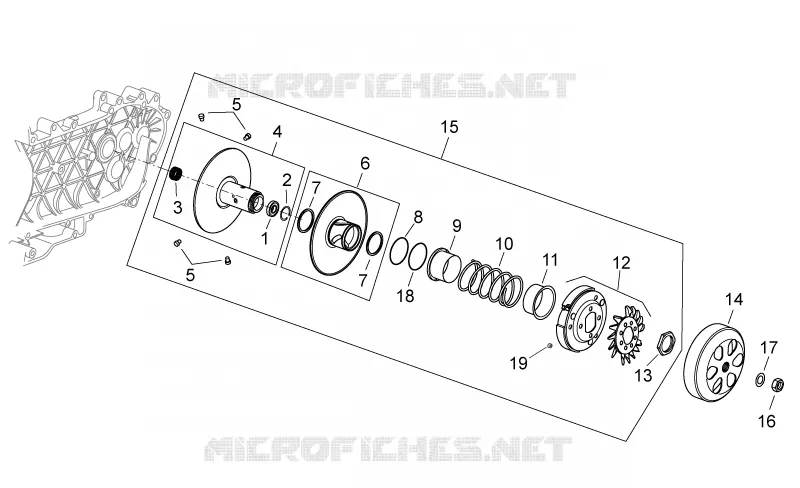

Parts Diagram
Parts Catalog
Drive shaft
by
Variator cover
Clutch
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Roller cage 20x29x18
AP8110104
Not Available
2
Snap ring
AP8580068
Not Available
3
Bearing 17x30x7
AP8125893
Not Available
4
Sec. fixed sheave, complete
AP8575013
Not Available
4
Sec. fixed sheave, complete
AP8580208
Not Available
5
Guide pin L=12,5
AP8580166
Not Available
6
Sec. sliding sheave, complete
AP8580139
Not Available
6
Sec. sliding sheave, complete
AP8580209
Not Available
7
Gasket ring
AP8550124
Not Available
8
Gasket
AP8550116
Not Available
9
Cup
AP8580211
Not Available
9
Cup
AP8176301
Not Available
10
Variator spring
AP8580119
Not Available
10
Variator spring
AP8580210
Not Available
11
Cup
AP8550114
Not Available
12
Centrifugal clutch assy
AP8580171
Not Available
12
Centrifugal clutch assy
CM1440075
Not Available
13
Ring nut
AP8550111
Not Available
14
Clutch drum
AP8577095
Not Available
15
Secondary pulley
AP8590004
Not Available
15
Secondary pulley
AP8176300
Not Available
16
Nut
AP8580095
Not Available
17
Washer
AP8580062
Not Available
18
Gasket
AP8550116
Not Available
18
Gasket
AP8577056
Not Available
19
Damper drift
431098
£1,44 Unit Price incl. VAT
