Engine displacement
125
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E3 (engine Piaggio)
5
Parts Catalog
Top box
6
Parts Diagram
Parts Catalog
Central body II
by
Undersaddle
Top box
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
1
Top box, blue
AP8184184
Not Available
1
Top box, grey
AP8184195
Not Available
1
Top box, red
AP8184083
Not Available
2
Seat cushion
AP8268649
Not Available
2
Seat cushion
AP8179970
Not Available
3
Top box lock u-bolt
AP8221335
Not Available
4
Lock pin
AP8221334
Not Available
5
Plaque
851949
£46,67 Unit Price incl. VAT
6
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
7
Vis SWP crois. brid.
AP8152329
£1,80 Unit Price incl. VAT
8
Vis bride
AP8152283
£2,17 Unit Price incl. VAT
9
"Douille en ""T"""
AP8121790
£1,88 Unit Price incl. VAT
10
Douille tableau de bord
AP8121741
£1,56 Unit Price incl. VAT
11
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
12
Vis taraud pour plast. Inox
AP8150420
£1,88 Unit Price incl. VAT

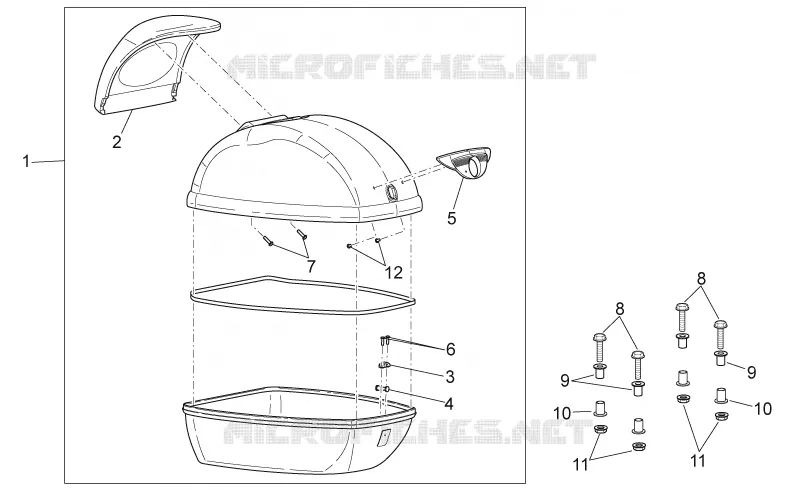

Find the detailed Top box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
