Parts Catalog
Central stand
6
Parts Diagram
Parts Catalog
Variator cover
by
Transmission
Central stand
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
1
Central stand
AP8146897
Not Available
2
Spring coupling screw
AP8580073
Not Available
3
Lateral stand
AP8146770
Not Available
4
Tampon fin de course béquille
AP8144729
£9,92 Unit Price incl. VAT
5
Internal lateral stand spring
AP8163206
Not Available
6
Lateral stand spring
AP8163207
Not Available
7
Central stand spacer
AP8121617
Not Available
8
Gasket ring
AP8121638
Not Available
9
Vis
AP8150438
£18,83 Unit Price incl. VAT
10
Ecrou autobloqu.
AP8152301
£1,94 Unit Price incl. VAT
11
Ress.hél.cyl.tract.
AP8121014
£3,71 Unit Price incl. VAT
12
Plaque fix.ressorts
AP8121876
£4,62 Unit Price incl. VAT
13
Caoutchouc;
AP8144152
£6,19 Unit Price incl. VAT
14
Lateral stand screw
AP8152295
Not Available
15
Ecrou bas
AP8152001
£2,63 Unit Price incl. VAT

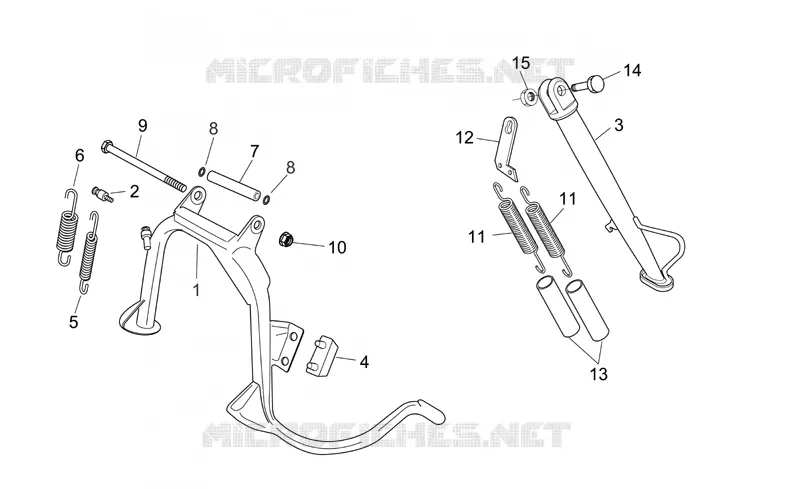

Find the detailed Central stand MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
